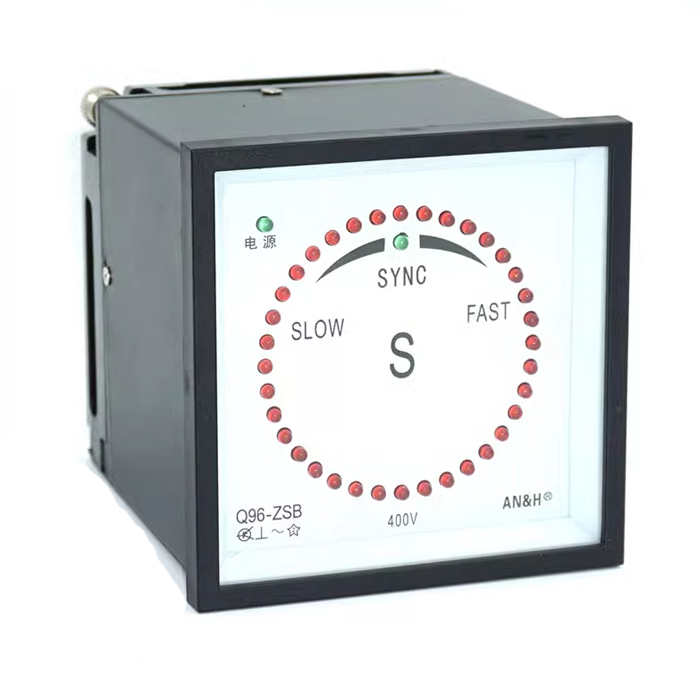

AH96-SM/F96-SM/51L5-SM/Q96-ZSB Marine Generator Synchroscope Indicator

Item No.: 02590
Advanced converter line and Indicating device integration structure,the instrument is high accuracy and large angle.Null meter reading instrument all have zero button,easy to adjust.
Description
Description

AH96-SM/F96-SM/51L5-SM/Q96-ZS/B Marine Generator Synchroscope Indicator

1.Type:AH96-SM、F96-SM、Q96-ZS/B、51L5-SM

2.It is mainly used in the grid connected operation of generator sets in various ship power stations .

3.Automatic detection of frequency difference and phase difference,When frequency difference is lower than a certain setting and phase
difference almost reaches 0 degree,it send closing signal to fulfill automatic  grid-connected.
4. voltage:Ac(100V、220V、380V、400V、415V、450V)士10%。
5.Ambient temperature range: -25℃ to +55℃。
6.Housing protection:IP44。
7.Frequencyrange:50HZ,60HZ.
8. Vibration resistance:2-100HZ≤0.7g。
9. Dielectric test: AC2.6KV, 50HZ, 1min。
10. Consumption:≤3VA。
