Name: AYK-03T Temp. display And Alarm Module
Brand: WEITONG MARINE
SKU: 02675
Availability: InStock
Rating: 5 (1 reviews)

Home > Marine Instrument > Marine Alarm Device

Description

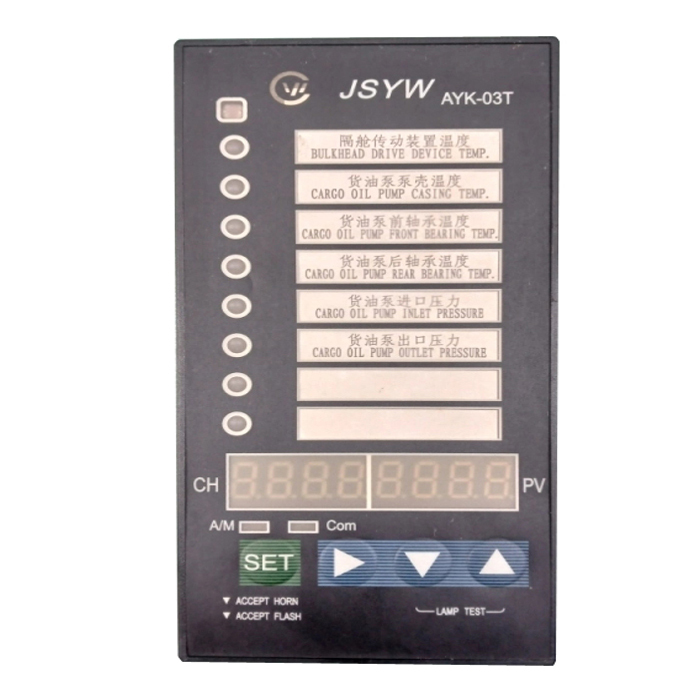

AYK-03T Temp. display And Alarm Module

This device has been specially designed, manufactured in conformity with 2000 SOLAS Amendment, Chap. ll -2, Reg.4 amended for protecting the cargo pump room. It has the functions of temp. monitoring, display, alarm and control etc, It is mainly used to monitor and alarm the working temp. of pump room equipments for all kinds of cargo carriers.

Mode: AYK-03T (8 alarm control module)

Input: 8x Pt100,3 Wire

Lock delay time: 0~99 seconds (adjustable)

Channel outputs: 8 switch signals output

Alarm output: contact output, NO or NC, AC 220V 2A

Accept horn: by means of push button on the front, or externally

Accept flash: by means of push button on the front, or externally

Function test: by pushing both accept and flash push buttons during at least 2 sec.

Other function: dimming/fail alarm

Supply voltage: 24V DC

Accuracy:+0.5%FS
