Name: Foam Filled Fender
Brand: WEITONG MARINE
Availability: InStock
Rating: 5 (1 reviews)

Home > Marine Mooring Equipment > Marine Airbag and Fender > Marine Fender

Description

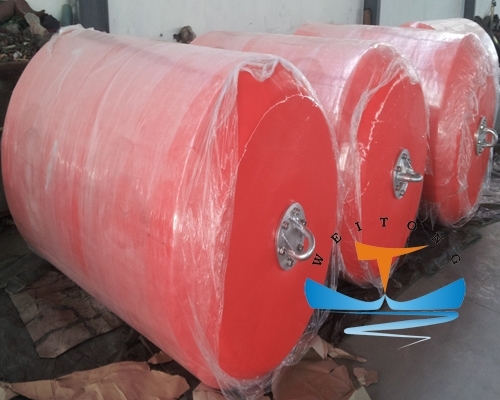

Foam Filled Fender
Foam Filled Fender a kind of compressed fender which builed outer protective layer with polyurea material and adopts polyurethane foaming material or plastic foaming as buffer medium. The destructive effects on docks and ships will be reduced by the compression to absorb the impact energy from ships in the course of using polyurethane floating fender.
Widely used for the docks, boatyard and ship boards etc.
Features:
1.Having the capability of floating, not easily influenced by the ebb and flow of the tide.
2.Simple, effective internal engineering
3.Easy and reliable mounting.
4.Low reaction force and high energy absorption.
Foam Filled Fender Specification

Size(mm)	Deflection 60%		Weight(±3%) (KG)
Size(mm)	Reaction Force(KN)	Enery Absorption(KJ)	Weight(±3%) (KG)
300×500	43	5	7
400×800	54	7	17
500×1000	89	32	23
700×1500	129	24	85
1000×1500	190	62	175
1000×2000	298	80	240
1200×2000	335	110	350
1350×2500	460	173	550
1500×3000	615	263	770
1700×3000	678	330	1075
2000×3500	940	535	1530
2000×4000	1095	630	1980
2000×4500	1250	690	2500
2300×4000	1380	735	2885
2300×5500	1860	1133	3480
2500×4000	1455	980	3390
2500×5500	1960	1230	3985
3000×5000	2180	1755	5350
3000×6000	2455	1960	6680
3300×4500	1960	1760	5750
3300×6500	3075	2830	8400
3500×7000	3975	3162	10100
