IMPA 232034 9M Solas Approval CCS EC Certificate Ship Pilot Ladder for Sale

Item No.: 01530
Weitong Marine offers kinds of quality Marine Pilot Rope Embarkation Ladder at reasonable price with outstanding service. pls feel free to contact us for more details.
Description
Description
IMPA 232034 9M Solas Approval CCS EC Certificate Ship Pilot Ladder for Sale
Marine Rope Ladder also can be called as Embarkation Ladder, used to be a rope ladder for embarking lifeboats & rafts in emergency case, or for crews to embark when anchoring, coming with the feathures of light weight, sate. It is widely used for various ship.
Standard: CB/T428-93,ISO5489-1986

Main Material:
Rope: Manila Rope
Timble: plastick & Steel

Types of Step:
Type Material Weight/pc
A Aluminum 0.95
B Wood 1.9
C Rubber 3.5
Marine Pilot Rope Embarkation Ladder Specification
No of step Length of rope ladder (mm) Weight (kgs)
    Aluminum Wood
10 3100 25.86 31.56
15 4650 33.47 43.92
20 6200 41.08 56.27
25 7750 48.69 68.64
30 9300 56.3 81
35 10850 63.91 93.36
40 12400 71.52 105.72
45 13950 79.13 118.08
50 15500 86.74 130.44
55 17000 94.35 142.86
60 18500 101.96 155.16
to add each 5 steps length increase 1500 weight increase 7.61 weight increase 12.36

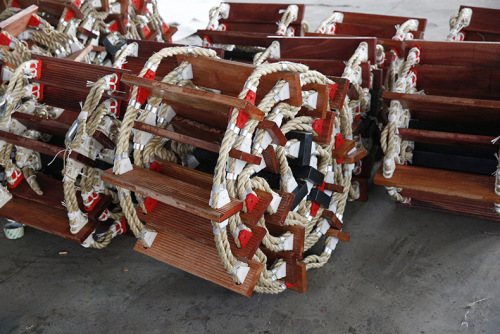

Wooden/Aluminum Pilot Ladder
Step Hardwood(The 4 Lower Steps of Ladders is Made of Rubber)
Step No. Stopper Plate Stopper Location L l Weight
mm mm kg
6 1 5th 1860 1550 22
7 2170 1860 25
8 2480 2170 28
9 2790 2480 31
10 3100 2790 34
11 3410 3100 37
12 3720 3410 40
13 4030 3720 43
14 2 5th, 12th 4340 4030 52
15 5th, 13th 4650 4340 55
16 5th, 14th 4960 4650 58
17 5270 4960 61
18 5580 5270 64
19 5890 5580 67
20 6200 5890 70
21 6510 6200 73
22 6820 6510 76
23 3 5th, 14th, 21st 7130 6820 86
24 5th, 14th, 22nd 7440 7130 89
25 5th, 14th, 23rd 7750 7440 92
26 8060 7750 95
27 8370 8060 98
28 8680 8370 101
29 8990 8680 104
30 9300 8990 107
Marine Ladder
We offers various competitive marine ladders for option, material: Aluminum, Steel, Stainless Steel, standard: GB, CB, JIS, ISO.
Accommodation Ladders,
Aluminium Ship Gangways(Wharf Ladder)
Bulwark Ladder
Pilot and Embarkation Ladder
Aluminum Accommodation Ladder
Steel Accommodation Ladder
Aluminum Wharf Ladder (also called as aluminum gangway)
Pilot Ladder
Embarkation Ladder
Mountain Ship Rope Ladder
Engine Room Inclined Ladder
Cargo Hold Inclined Ladder
Aluminum Inclined Ladder
Stainless Steel Inclined Ladder
Stainless Steel Vertical Ladder
Aluminum Pipe Vertical Ladder
Ladder for Draft Reading



Certificate:

Workshop:
IMPA 232001
