IMPA 232052 Marine Wooden Embarkation Rope Ladder for Boat

Item No.: 01533
Weitong Marine offers quality Marine Embarkation Ladder and pilot rope ladder at reasonable price with outstanding service. pls feel free to contact us for more details.
Description
Description

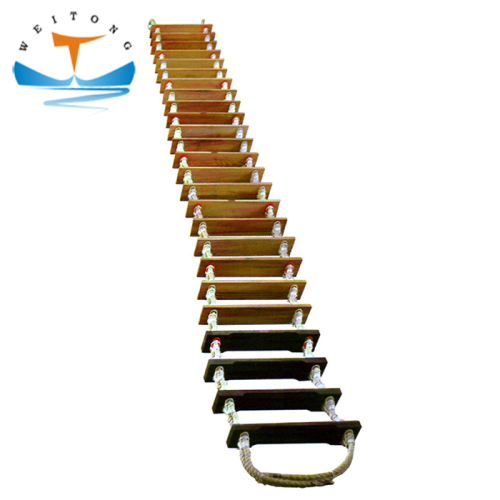

IMPA 232052 Marine Wooden Embarkation Rope Ladder for Boat
Embarkation Ladders is used to be a rope ladder for embarking lifeboats & rafts in emergency case, or for crews to embark when anchoring, coming with the feathures of light weight, sate. It is widely used for various ship.
Standard: CB/T428-93,ISO5489-1986
Main Material:
Rope: Manila Rope
Timble: plastick & Steel
Types of Step:
Type Material Weight/pc
A Aluminum 0.95
B Wood 1.9
C Rubber 3.5
Marine Pilot Rope Embarkation Ladder Specification
No of step Length of rope ladder (mm) Weight (kgs)
Aluminum Wood
10 3100 25.86 31.56
15 4650 33.47 43.92
20 6200 41.08 56.27
25 7750 48.69 68.64
30 9300 56.3 81
35 10850 63.91 93.36
40 12400 71.52 105.72
45 13950 79.13 118.08
50 15500 86.74 130.44
55 17000 94.35 142.86
60 18500 101.96 155.16
to add each 5 steps length increase 1500 weight increase 7.61 weight increase 12.36

Certificate:

Workshop:
