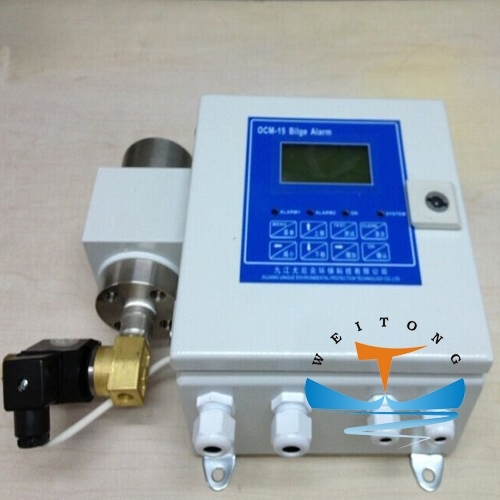

15PPM Oil Water Monitor

Item No.: 00279
Weitong Marine offers 15PPM Oil Water Monitor in high quality with reasonable price and best service. If you are interested in the item, pls don't hesitate to contact us for more details.
15PPM Oil Water Monitor
15PPM Oil Water Monitor is approved by the China Classification Society (CCS), and the performance indicators is in accord with the IMO Marine Environment Protection Committee MEPC.107 (49) resolution requirements. It isis a new type instrument for monitoring micro-oil content in waste water.It's suitable for contimuous monitoring of the oily water discharge in the bilge, with a 15 overrun alarm system and a controlling system for waste water discharge. In most case, it applied as a set device for oily water seperator.
15PPM Oil Water Monitor Feature
(1)Applying the most advanced multi-band infrared measuring technique and the micro-processing technology, fast response with high-accuracy-measurement;
(2)The overall use of EMI suppression design to overcome the environmental impact on equipment,and improve system stability and equipment reliability;
(3)Real-time display of oil concentration and working state of the system.
(4)Real-time recording of the alarm status and automatically store data,historical data at any time to print;
(5)Measuring room to facilitate maintence and cleaning,simple operation;
(6)With the monitoring of operation condition,automatic control over discharge of sewage to function when equipment in failure,maintence or replacement
15PPM Oil Water Monitor Specification
Measuring range 0-30ppm (display range 0-80ppm)
Measurement precision (15ppm alarm) ± 5ppm (meet the IMO standard)
Display type LED numeric display
Alarm indication 4 red LED
Alarm relay 2-way
Rated capacity of relay contact 250VAC 3A (non-emotional)
Response time ≤ 5 seconds
Output signal 4-20mA
Environment temperature 0 °C - 55 °C
Relative humidity ≤ 93%
Sample liquid temperature 1 - 55 °C
Sample liquid pressure 0.1-0.6MPa
Sample liquid flow 0.1-4L / min
Protection class IP55
Main power supply 220/110VAC 50Hz/60Hz
Power Consumption ≤ 20VA
Main power supply 220/110VAC 50Hz/60Hz
Power Consumption ≤ 20VA
Overall dimension 400mm × 300mm × 160mm
