DK-H Navigation Light Control Panel

Item No.: 01850
Weitong Marine offers navigation light control panels  in high quality with reasonable price and best service. If you are interested in the items, pls don't hesitate to contact us for more details.
Description
Description

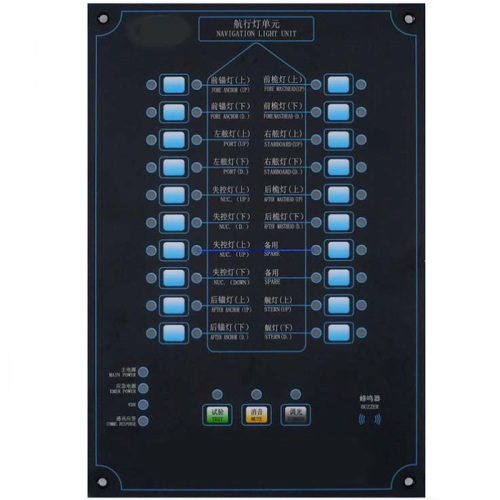

DK-H Marine Navigation Light Control Panel

Standard
1. CCS GRADE ENTRY NORMS FOR STEEL SHIPS 2015, Chapter2, Part4 and it's Amendments.
2. IMO Resolution MSC.253(83) Adoption of the Performance Standards for Navigation lights,
Navigation Light Controllers and Accociated Equipment.

Function
Navigation Light control device is mainly used for monitoring and control
the navigation lights during ship navigation.
Backup, Circuit Alarm, Power failure Alarm, Brightness adjustable, Flash Interface, Self-check,Communication Interface,
Communication failure Alarm.

Specific Usage
Relative Humidity:< 95%(40°C
Air pressure:86kPa- 106kPa
Bulb Rated power:2-65W
Bulb vltage: DC24V or AC 220V ptimal)
Normal Usage
EnvironmentTemperature:-10°C -+55°C
RelativeHumidity:30%-90%
Air Pessure:86kPa-106kPa
Spare Power:DC24V ±30%
Main Power:AC220V±10%
Controller Static Power Consumption:220V,50mA

Dimension
Opening Size:280*188mm
Position Size:290*190mm
Overall Size:310*210*100mm
Dimension
Opening Size:284*188mm
Position Size:290*190mm
Overall Size:310*210*100mm

specification:
Place of Origin:
China
Protection Class:
IP20
Model Number:
DK-H
Category:
Navigation AIDS
Voltage:
24V/60W;110V/60W;220V/65W
Ships From:
zhuhai
Power supply:
220V AC or 24V DC
Weight:
2.4 kg
Product name:
Navigation Signal light control panel
OEM:
Acceptable
Body Material:
PVC
MOQ:
1 pcs
Packing:
Color Box
Brand Name:
HaihSea
