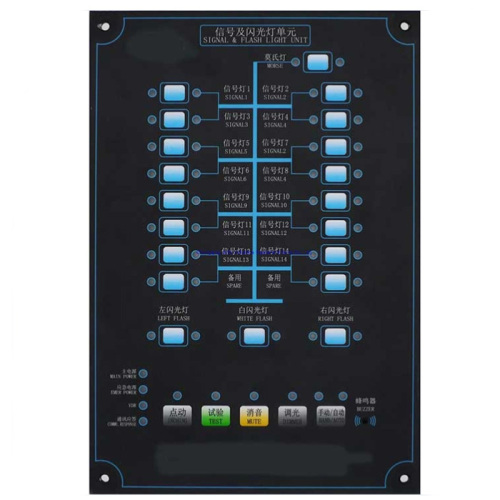

Marine Navigation Signal Light Control Panel
Standard1. CCS GRADE ENTRY NORMS FOR STEEL SHIPS 2015, Chapter2, Part4 and it's Amendments.2. IMO Resolution MSC.253(83) Adoption of the Performance Standards for Navigation lights,Navigation Light Controllers and Accociated Equipment.FunctionNavigation Light control device is mainly used for monitoring and controlthe navigation lights during ship navigation.Backup, Circuit Alarm, Power failure Alarm, Brightness adjustable, Flash Interface, Self-check,Communication Interface,Communication failure Alarm.
Specific Usage
Relative Humidity:< 95%(40°C)
Air pressure:86kPa- 106kPa
Bulb Rated power:2-65W
Bulb vltage: DC24V or AC 220V ptimal)
Normal Usage
EnvironmentTemperature:-10°C-+55°C
RelativeHumidity:30%-90%
Air Pessure:86kPa-106kPa
Spare Power:DC24V ±30%
Main Power:AC220V±10%
Controller Static Power Consumption:220V,50mA
DimensionOpening Size:284*188mmPosition Size:290*190mmOverall Size:310*210*100mm
specification:
Place of Origin:
|
China
|
Protection Class:
|
IP20
|
Model Number:
|
DK-HX
|
Category:
|
Navigation AIDS
|
Voltage:
|
24V/60W;110V/60W;220V/65W
|
Ships From:
|
zhuhai
|
Power supply:
|
220V AC or 24V DC
|
Weight:
|
2.4 kg
|
Product name:
|
Navigation Signal light control panel
|
OEM:
|
Acceptable
|
Body Material:
|
PVC
|
MOQ:
|
1 pcs
|
Packing:
|
Color Box
|
Brand Name:
|
HaihSea
|
