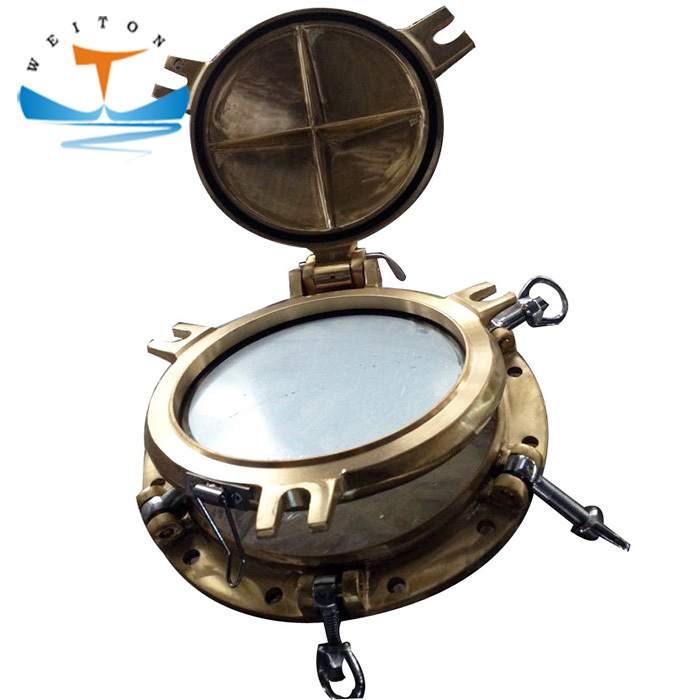

A60 Class Brass Marine Windows Portholes For Boats

Description

A60 Class Brass Marine Windows Portholes For Boats
Weitong Marine supplys durable, watertight, tough, marine porthole windows. Styles included are fixed, half drop, full drop, horizontal sliding and hinged windows. Steel or aluminum window frames and a complete range of high quality glass are available to meet every type of request.In addition to windows,Weitong Marine supplys high quality, heavy, medium or light duty portlights.
Products description:

Winodw Type	Heavy Porthole	Light Porthole	A0 Porthole	A60 Porthole
	(with deadlight)	(without deadlight)
Material	Steel		Steel
	Stainless Steel		Stainless Steel
	Copper/Brass		Copper/Brass
	Aluminum
Fire Class	None		A0	A60
Glass	Transparent		A0 glass	A60 glass
	Frosted glass
Installation Type	Bolting
	Welding
Accessories	with deadlight	without deadlight	with deadlight
Optional	Window Box
Accessories
Opening Type	Openable Type
	Fixed Type

Technical requirements:

Rectangular Fixed/Opened Type Boat Window

Model: GB/T5746-1996
Length (mm):300/355/400/450/500/560/900/1000/1100
Width (mm): 425/500/560/630/710/800/630/710/800
Glass Thickness: 8/10/12/15/19
Material: Aluminum Alloy & Glass
Classification: ABS,CCS,BV,GL etc.

NO	clear light size		Open Size		QTY Of Bolt	Glass
NO	L	W	L	W	QTY Of Bolt	L	W	Thickness	R
1	300	425	300	425	16	314	439	8	58
2	355	500	355	500	20	369	514	8	58
3	400	560	400	560	20	414	574	8	58
4	450	630	450	630	22	464	644	8	108
5	500	710	500	710	24	514	724	10	108
6	560	800	560	800	28	574	814	10	108
7	900	630	900	630	32	914	644	12	10

Non-opening Bolted Side Scuttle AND Open Side Scuttle

Type: heavy type (E) or light type (F)
Material: aluminum alloy
Glass: toughened glass
Cutout in bulkhead: 253mm to 463 mm
Nominal size: 200mm to 400 mm
Glass thickness: E: 10mm to 19mm F: 8mm to 15 mm
Deadlight: with deadlight or without deadlight.

Non-opening Bolted Side Scuttle
Product No.	Clear light Size(D)	D1	d	h	Clips Qty.		Bolt		Opening Size
Product No.	Clear light Size(D)	D1	d	h	Deadlight	Frame	Whorl	Qty.	Opening Size
1	200	250	75	155	2	/	M12	8	253
2	250	305	75	182	2	/	M16	8	308
3	300	360	75	207	2	/	M16	12	363
4	350	410	75	232	3	/	M16	12	413
5	400	460	75	257	3	/	M16	12	463
6	450	510	75	282	3	/	M18	12	513

Opening Side Scuttle
Product No.	Clearlight Size(D)	D1	D2	C	Bolt		Opening Size
Product No.	Clearlight Size(D)	D1	D2	C	Whorl	Qty.	Opening Size
1	200	250	350	16	M16	8	253
2	250	305	400	16	M16	8	308
3	300	360	450	16	M16	12	363
4	350	410	500	20	M16	12	413
5	400	460	550	20	M16	12	463
6	450	510	600	20	M16	12	513
