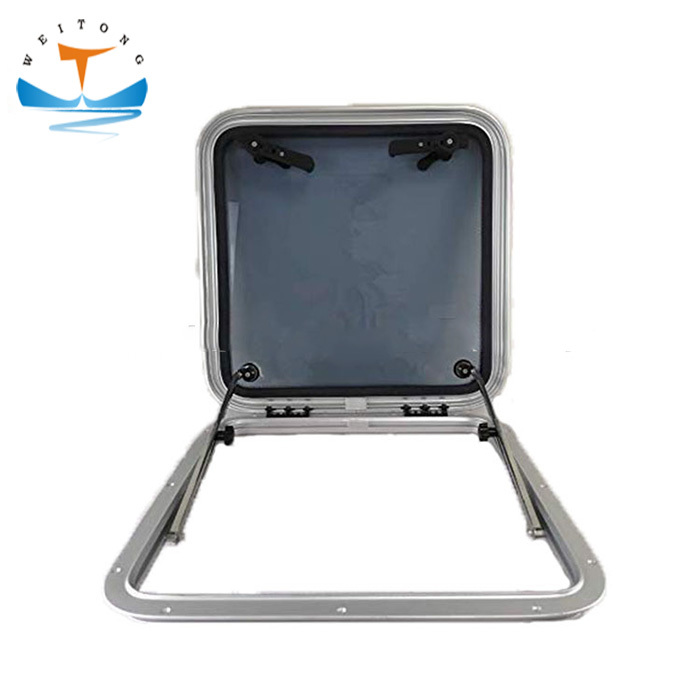

Feature:
*Designed for service life of 20 years
*Designed for temperatures between -40 to +60 degree
*Water proof from outside,Built-in installation
*Full transparent cover material,8mm PC / 8mm Glass
*Resistant to corrosion ISO 92233 class C4 (C5 light)
*Frame in seawater resistant aluminium,natural
*Strength to withstand a weight of 150kg from outside (Person Standing on skylight)
*No maintains is needed,Only cleaning can be needed depending on environment.
Item Code | Overall Size(mm) | Cut--out Size(mm) | Suitable Hull Thickness(mm) | |
Standard | Super Thin(ST) | |||
BR375x375 | 375x375 | 310x310xR45 | 28-50 | 3-23 |
BR425x425 | 425x425 | 360x360xR45 | 28-50 | 3-23 |
BR475x475 | 475x475 | 410x410xR45 | 28-50 | 3-23 |
BR525x525 | 525x525 | 460x460xR45 | 28-50 | 3-23 |
BR575x575 | 575x575 | 510x510xR45 | 28-50 | 3-23 |
BR625x625 | 625x625 | 560x560xR45 | 28-50 | 3-23 |
BR675x675 | 675x675 | 610x610xR45 | 28-50 | 3-23 |
