ABS/CCS A60 Marine Engine Room Door for Ship

Description

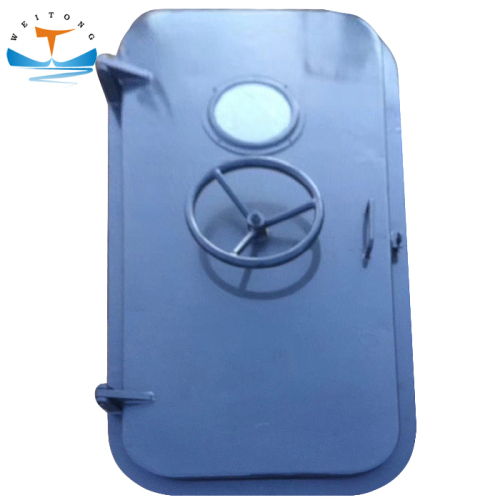

ABS/CCS A60 Marine Engine Room Door For Ship
We provide 4 class A`B`C`D, and 8 types for marine single leaft steel weathertight door.
AF-Class A, square corner ;
AY-Class A, round corner;
BF-Class B, square corner;
BY-Class B, round corner;
CF-Class C, square corner;
CY-Class C, round corner;
DF-Class D, square corner;
DY-Class D, round corner

Door Class and Applicable Position
Class A    Front bulkhead of the first superstructure above freeboard deck(in the range 0.1-0.7L forward after perpendicular)
Class B    Front bulkhead of the second superstructure above freeboard deck(in the range 0.1-0.7L forward after perpendicular), and the aft bulkhead & side wall of the first superstructure.

Class C    Front bulkhead of the third superstructure above freeboard deck(in the range 0.2-0.6L forward after perpendicular),and the aft bulkhead & side wall of the second superstructure.
Class D    Front bulkhead of the fourth superstructure above freeboard deckand the aft bulkhead & side wall of the third superstructure.

Marine Doors
Weitong Marine offers kinds of deck marine doors:Waterproof door,Fireproof door,Gastight door,Sliding door and etc.Our Marine doors must pass the weathertight /watertight/ gastight/ fireproof/ soundproof test, and suitable for commercial vessels, LNG carriers, fish boats, tankers, yachts.
*Material:steel,aluminum,stainless steel
*Installment: Welded or Bolted.
*Operation type: dog-clip, single lever, handwheel
* Bare, painted, anodized, galvanized finishes for option
Full selection of door specifications are available for bellow main marine doors
* Waterproof door:Marine weathertight single-leaf steel or aluminium door,Quick acting steel      weathertight door,Hydraulic sliding  weathertight door.
* Fireproof door:A0,A15,A30,A60,B0,B15 fire class steel door.
* Gastight door:Inflation gastight door,Mechanical pressure clamp gastight door.
* Sliding door:aluminum sliding door, Hydraulic sliding door.
* Hollow door:aluminium cabin hollow door,G.R.P cabin hollow door.
* Related products like marine window and marine hatch cover can also be provided.

Specification:

Product Name	Marine Weathertight / Watertight Steel Door
Type	AF, AY, BF, BY, CF, CY, DF, DY
Type	Dog clips / Single Handle / Round handle
Surface Treatment	Sand-blasted to Sa2.5 and primer (for steel parts)
Surface Treatment	Galvanized (for dogs and mechanism)
Clear light size	Customized
Options	Bumper, Door closer, C2 lock, ISPS device, Portlight, Limit switch
Making Process	Manufacturing door leaf→correcting→checking flatness→assembling→hose testing→watertight testing→measuring paint thickness
Packaging	Standard Plywood packing, about 400pcs for 40'GP
Shipping	Delivered goods to shipping port by seller

Type	Clear size H*W(mm)	Leaf Size H1*W1 (mm)	Open size of wall		Weight
					Leaf Thickness
			AF,BF,CF,DF	AY,BY,CY,DY	4	6	8
1050	1000*500	1055*555	1100600R80	1100600R150	22	30
1260	1200*600	1255*655	1300700R80	1300700R150	30	41
1460	1400*600	1455*655	1500700R80	1500700R150	35	55	77
1475	1400*750	1455*805	1500850R80	1500850R150	45	66	92
1490	1400*900	1455*955	15001000R80	15001000R150	60	77	107
1660	1600*600	1645*645	1700700R80	1700700R150		63	87
1675	1600*750	1645*805	1700850R80	1700850R150		75	104
1690	1600*900	1645*945	17001000R80	17001000R150		88	121
1860	1800*600	1845*645	1900700R80	1900700R150		70
