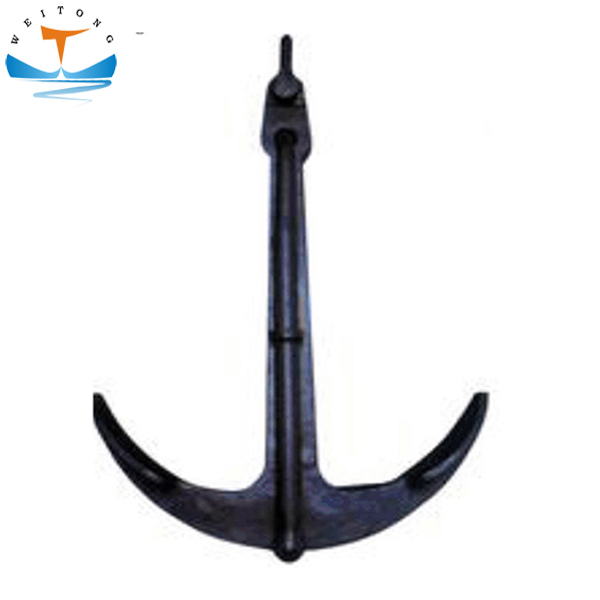

ADMIRALTY ANCHOR |
|||||
Anchor Weight |
H |
h |
h1 |
B |
C |
kg |
mm |
mm |
mm |
mm |
mm |
50 |
960 |
230 |
42 |
635 |
185 |
75 |
1105 |
266 |
45 |
710 |
210 |
100 |
1215 |
293 |
49 |
780 |
230 |
125 |
1310 |
316 |
52 |
840 |
245 |
150 |
1395 |
336 |
55 |
900 |
265 |
200 |
1535 |
370 |
61 |
990 |
290 |
250 |
1650 |
398 |
65 |
1065 |
310 |
300 |
1755 |
423 |
70 |
1105 |
330 |
400 |
1930 |
464 |
77 |
1240 |
365 |
500 |
2080 |
502 |
84 |
1335 |
390 |
600 |
2210 |
533 |
89 |
1440 |
415 |
700 |
2330 |
560 |
93 |
1500 |
440 |
800 |
2435 |
587 |
97 |
1570 |
460 |
900 |
2530 |
610 |
101 |
1630 |
475 |
1000 |
2620 |
633 |
104 |
1685 |
495 |
1250 |
2825 |
680 |
112 |
1810 |
535 |
1500 |
3000 |
725 |
118 |
1955 |
565 |
2000 |
3300 |
797 |
131 |
2140 |
625 |
2500 |
3550 |
857 |
138 |
2270 |
672 |
3000 |
3780 |
912 |
150 |
2415 |
715 |
