Home > Marine Mooring Equipment > Anchor Chain and Accessories > Chain Accessories

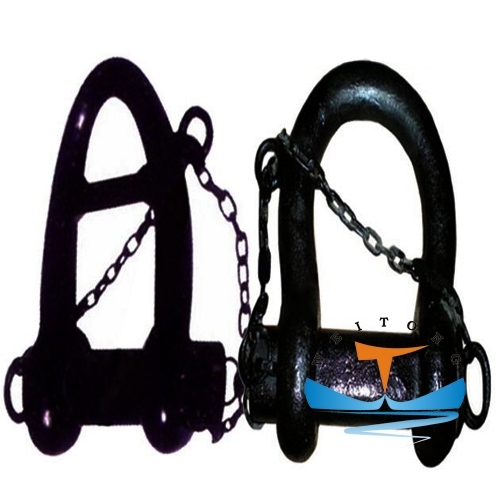

Buoy Shackle
Buoy Shackle Buoy Shackle Buoy Shackle Buoy Shackle Buoy Shackle Buoy Shackle
  • Buoy Shackle
  • Buoy Shackle

Buoy Shackle

Weitong Marine offers Buoy Shackle in high quality with reasonable price and best service. If you are interested in the item, pls don't hesitate to contact us for more details.
Request Quote
Description
Description
Buoy Shackle
There are two types of Buoy Shackles used for connecting anchor chain and mooring Buoy. Type B is joint with the end of anchor chain, made of forged steel,or cast steel.
Certificates: ABS,CCS,DNV,RINA,BV,KR etc.
Chain Accessories Specifications
Send your message to us
ver_code
Chain Diameter (mm) Stud Link Chain (kg/27.5m) Common Link (kg) Enlarged Link (kg) End Link (kg) Kenter Shackle (kg) Joining Shackle (kg) End Shackle (kg) Swivel Link (kg) Anchor Swivel Shackle A.SW.S(a)(kg) Anchor Swivel Shackle A.SW.S(b)(kg)
14 128 0.26 0.39 0.32 0.6 0.67 1.5 1.05 / /
16 150 0.35 0.49 0.57 0.65 0.95 1.52 1.34 / /
17.5 197 0.5 0.66 0.67 0.88 1.34 2.05 1.73 / /
19 236 0.66 0.85 1.06 1.13 1.84 2.41 2.17 / /
20.5 268 0.8 1.02 1.06 1.36 2.2 3.25 2.2 / /
22 324 1.04 1.3 1.58 1.64 2.66 3.95 3.5 17.5 7.6
24 370 0.3 1.65 1.84 2.13 3.4 5.12 4.53 17.5 9.9
26 431 1.64 2.03 2.74 2.58 4.5 6.7 5.79 37.6 12.5
28 496 2.04 2.48 3.23 3.3 5.19 8.1 7.25 37.6 15.7
30 563 2.48 3.58 3.74 4.15 6.32 10 9 91 19.4
32 635 2.98 4.45 4.74 5.06 8.24 11.77 10.03 91 23.4
34 712 3.54 5.21 5.54 6.01 9.56 14.2 12.75 107 28
36 800 4.23 5.99 6.95 6.89 11.31 16.55 14.96 107 33.4
38 888 4.96 6.15 7.66 8.4 13.45 19.55 17.44 107 39.4
40 1,033 6.04 8.01 8.2 9.63 15.5 22.8 20.25 115 46
42 1,084 6.65 9.04 9.92 11 18.1 26 25.4 115 53
44 1,197 7.73 10.25 11.42 12.45 20.25 29.71 26.6 139 61
46 1,310 8.8 11.54 13.92 14.1 23.33 34.3 30.67 139 70
48 1,438 10.06 14.44 15.67 16.7 27.5 38 35 139 79
50 1,546 11.28 16.06 17.7 19 31.6 45.2 40.5 264 89
52 1,661 12.68 17.85 18.97 20.3 34 50.9 49.5 264 101
54 1,791 14.1 19.6 20.84 23.7 38.5 53.8 50.5 270 113
56 1,926 15.66 21.69 23.55 26.7 46 63 55 270 126
58 2,086 17.83 24 25.95 27.2 46.8 70 64.6 294 140
60 2,249 19.9 26 28.48 27.7 51 77.5 71.3 294 155
62 2,361 21.66 28.63 30.81 35 59.2 86.3 77.7 294 171
64 2,516 23.51 31.13 32.7 38.4 62.7 96.3 83.3 403 188
66 2,676 25.98 35 38.4 42.3 75 99.6 88.7 403 206
68 2,885 28.6 39.72 39.5 46 76.7 102.6 100 403 225
70 3,010 31 43.33 43.8 48.7 90 126.6 107.8 464 246
73 3,274 35.2 48.3 49 53 95 138.2 125.6 464 278
76 3,548 39.9 53.6 57.1 60.7 107 146 143.8 464 314
78 3,737 43 59.9 62.3 65.5 116 164 154 749 340
81 4,030 48.6 66 67.4 75 130 190 188 749 380
84 4,334 53.5 69 74.4 90 136 212 198 931 424
87 4,650 58.9 81.1 84.6 96 160 237 215 931 472
90 4,976 66.35 88 91 108 176 245 238 1,191 522
92 5,199 71.22 97.5 100 114 196 257 252 1,191 558
95 5,544 78.08 101 109 128 215 300 269 1,191 614
97 5,780 83.77 107 117 133 222 335 301 / 654
100 6,143 89.03 120 127 146 252 353 330 1,464 717
102 6,398 95.5 130 134 158 267 378 344
