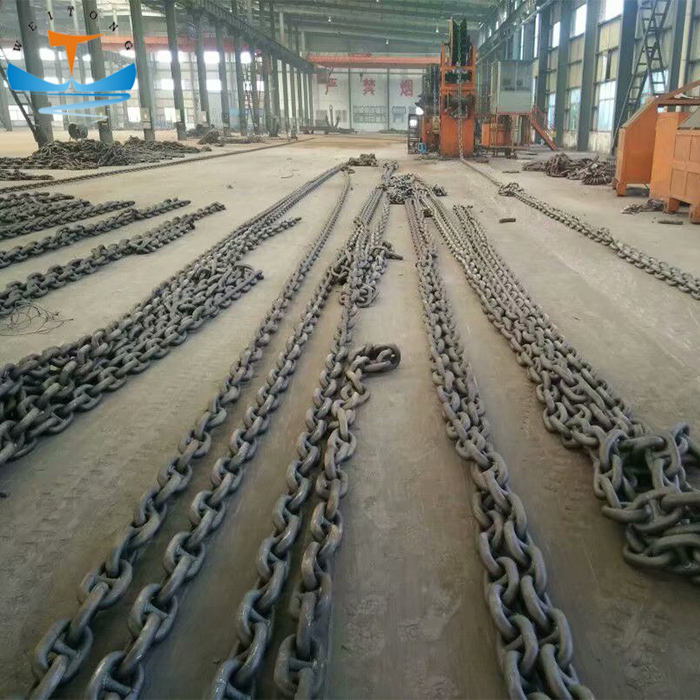

Chain Diameter (mm) | Breaking Load (KN) | Proof Load(KN) | Weight | ||||
AM1 | AM2 | AM3 | AM1 | AM2 | AM3 | (kg/m) | |
11 | 52 | 72 | 102 | 36 | 52 | 72 | 2.65 |
12.5 | 66 | 92 | 132 | 46 | 66 | 92 | 3.42 |
14 | 82 | 116 | 165 | 58 | 82 | 116 | 4.29 |
16 | 107 | 150 | 216 | 76 | 107 | 150 | 5.61 |
17.5 | 127 | 179 | 256 | 89 | 127 | 179 | 6.71 |
19 | 150 | 211 | 301 | 105 | 150 | 211 | 7.91 |
20.5 | 175 | 244 | 349 | 123 | 175 | 244 | 9.2 |
22 | 200 | 280 | 401 | 140 | 200 | 280 | 10.6 |
24 | 237 | 332 | 476 | 167 | 237 | 332 | 12.61 |
26 | 278 | 389 | 556 | 194 | 278 | 389 | 14.8 |
28 | 321 | 449 | 642 | 225 | 321 | 449 | 17.17 |
30 | 368 | 514 | 735 | 291 | 368 | 514 | 19.71 |
32 | 417 | 583 | 833 | 328 | 417 | 583 | 22.43 |
34 | 468 | 655 | 937 | 366 | 468 | 655 | 25.32 |
36 | 523 | 732 | 1050 | 406 | 523 | 732 | 28.38 |
38 | 581 | 812 | 1160 | 448 | 581 | 812 | 31.62 |
40 | 640 | 895 | 1280 | 492 | 640 | 895 | 35.04 |
42 | 703 | 981 | 1400 | 538 | 703 | 981 | 38.63 |
44 | 769 | 1080 | 1540 | 585 | 769 | 1080 | 42.4 |
46 | 837 | 1170 | 1680 | 635 | 837 | 1170 | 46.34 |
48 | 908 | 1270 | 1810 | 686 | 908 | 1270 | 50.46 |
50 | 981 | 1370 | 1960 | 739 | 981 | 1370 | 54.75 |
52 | 1060 | 1480 | 2110 | 794 | 1060 | 1480 | 59.22 |
54 | 1140 | 1590 | 2270 | 851 | 1140 | 1590 | 63.86 |
56 | 1220 | 1710 | 2430 | 909 | 1220 | 1710 | 68.68 |
58 | 1290 | 1810 | 2600 | 969 | 1290 | 1810 | 73.67 |
...... | ...... | ...... | ...... | ...... | ...... | ...... | ...... |
...... | ...... | ...... | ...... | ...... | ...... | ...... | ...... |
162 | 7990 | 11180 | 15980 | 5590 | 7990 | 11180 | 574.74 |
Chain Diameter (mm) | Tension Load | Tension Load | Tension Load | Tension Load |
(KN) | (KN) | (KN) | (KN) | |
M2 | M3 | |||
24 | 135 | 299 | 210 | 476 |
26 | 158 | 351 | 241 | 556 |
28 | 183 | 407 | 286 | 642 |
30 | 211 | 468 | 311 | 735 |
32 | 239 | 531 | 335 | 833 |
34 | 270 | 600 | 386 | 937 |
36 | 302 | 672 | 442 | 1050 |
38 | 337 | 749 | 501 | 1160 |
40 | 373 | 829 | 563 | 1280 |
42 | 412 | 915 | 597 | 1400 |
44 | 452 | 1000 | 630 | 1540 |
46 | 494 | 1098 | 698 | 1680 |
48 | 583 | 1196 | 771 | 1810 |
50 | 584 | 1294 | 844 | 1960 |
