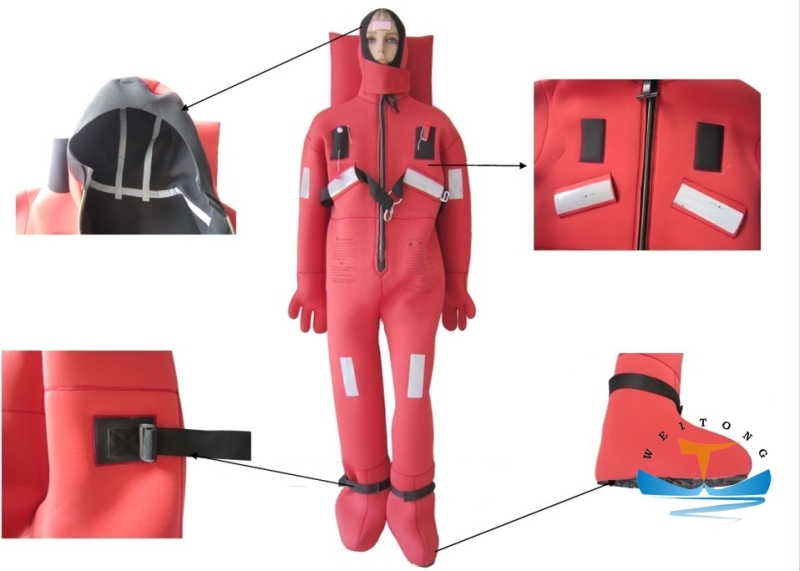

CCS/EC Approved Insulated Immersion Suit For Ship

Item No.: 00050
CCS/EC approved immersion suit Insulated meet the requirements of SOLAS 74/96, LSA Code, and MSC.81(71), MSC.200(80), come with CCS and EC certificates.
CCS/EC Approved Insulated Immersion Suit For Ship
There are 2 types of immersion suits: type-I and type-II

Type I immersion suits
Outside material :Waterproof Beryline oxford textile
Inside material :Foamed polyethylene ,Aluminum plate film.
Thermal protective function: Insulated

Type II Immersion Suits
Main material :CR neoprene sponge (thickness:5mm)
Thermal protective function: Insulated
Thermal Performance:
The wearer's body temperature will not be 20C lower than normal temperature after immersing in the 00C~20C static water for 6 hours.

Moare than 142 N and the decrease of buoyancy is less than 5% after submerging if fresh water for 24 hours.
Floating performance:
The wearer is capable of floating in face-up and lifting the wearer's mouth above the water at least 120mm.

Accessories : Water-proof light, whistle
Printing: customerized printing, OEM sevices

Type Specification Stature Package dimension
Type I XL Above 1.8m 56x34x32cm
L 1.65-1.8m 56x34x51cm
M Below 1.65m 56x34x74cm
Type-II XL Above 1.8m 58x23x36cm
L 1.65-1.8m

Remark: The immersion suit is designed to be worn without life jacket, but can not be classified as life jacket.
