CXH4-21P Single Deck Navigation Signal Light Boat Stern light

Weitong Marine offers Single Deck Navigation Signal Light CXH-21P in high quality with reasonable price and best service. If you are interested in the item, pls don't hesitate to contact us for more details.
Description
Description

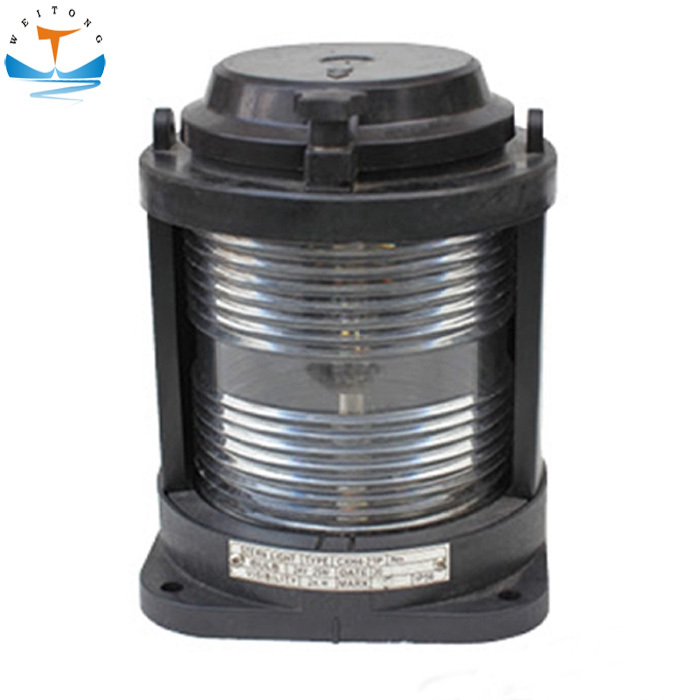

CXH4-21P Single Deck Navigation Signal Light Boat Stern light
The Navigation Signal Light used to the ship with length50M or above as lamp signal liaison when night navigation.
Standards
1. Confirm to the international regulation for preventing collision at sea, 1972 and grade entry norms for steel ships.
2. Confirm to the International Standard IEC60598-1-2008.
3. Confirm to the standard of marine electric signal light’s technical condition GB/T 3028-2012
Features
1. Easy to Install and replace the bulb with a leakage hole at the bottom.
2. The shell is made of engineering plastic, corrosion resistance and impact resistance
3. The shade is made of polycarbonate, UV Resistance and non-discolouring color.
Single Deck Navigation Signal Light CXH-21P Specifications
Name Type Visibility Level Arc Lamp Holder Voltage/power Protection Class Cable Outside Dia Color Weight
Starboard Light CXH1-21P 3n.m 112.5° BAY15d 12V/25W,
24V/25W
IP56 Φ9 Green 1.2kg
Port Light CXH2-21P 3n.m 112.5° Red 1.2kg
Masthead Light CXH3-21P 6n.m 225° White 1.2kg
Stern Light CXH4-21P 3n.m 135° White/yellow 1.2kg
All-Round CXH6-21P 3n.m 360° Red/white/yellow 1.2kg
