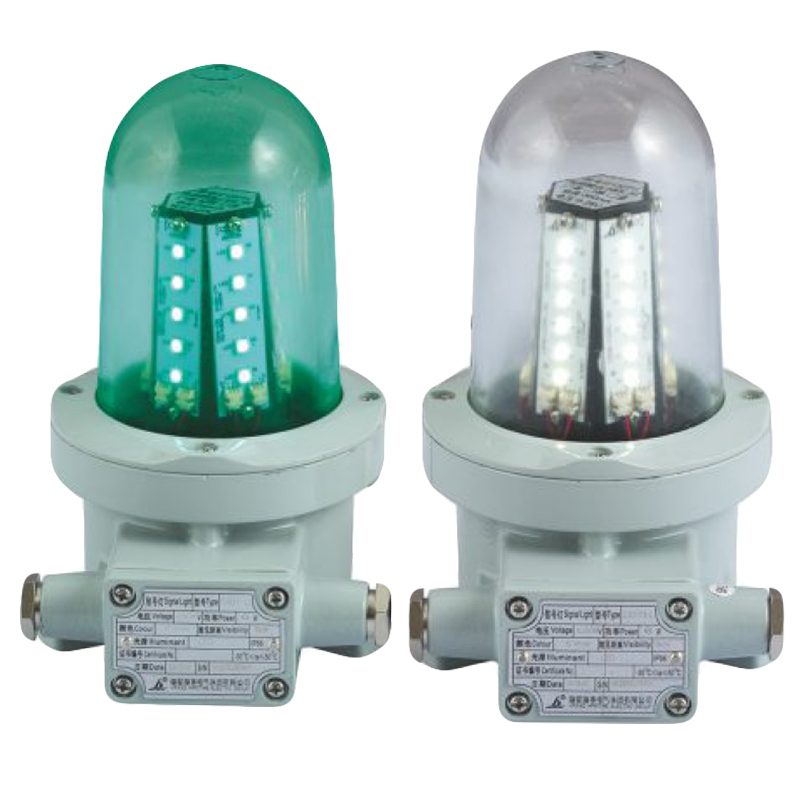

CXH5-L LED Marine Signal Light For Ship

Item No.: 02047
Weitong Marine offers LED Marine Navigation Signal Light CXH5-L 6W AC100-240V/DC24V in high quality with reasonable price and best service. If you are interested in the item, pls don't hesitate to contact us for more details.
Description
Description
CXH5-L LED Marine Signal Light For Ship
Marine Suez Signal Light CXH5-L is applied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation,and for the signal identification for navigation and for rules of Suez Canal.
Material: silicon brass (better performance in corrosion resistance)
Visibility: 3n.m ;
Lamp holder:B22d
Voltage / Power: AC100-240V/DC 24V
Protection class: IP66
Color: blue, green, white, red, yellow


Specification:




The scope of application Applied to the ships with the length of 50m or above as lamp signalliasion when night navigation
Name Singal light
Type CXH5-L
Rated Voltage AC100V~240V、DC24V
Power 6w
Illuminant LED
Color White/Red/Green/Yellow/Blue
Illuminant life ≥50000h
Level arc 360º
Vertical arc ±5
Visibility 3n.m
Protection class IP66
Cable outside diameter Ø8-Ø10
Installation method Seat
Ambient temperature -30ºC-+55ºC
Lamp body material Aviation aluminum
Lamp shade material PC engineering plastics
Lamp shade color Transparent
Weight 1.5kg
