IMPA 232076/232077 Aluminum Alloy Wharf Ladder

Item No.: 00999
Wharf Ladder for Marine  is used for the connection between ships and dock. It is widely used for marine and offshore. The design of our wharf ladder is totally in accordance with the ISO standard, IMO standard, and kinds of Classification Society'srequir
Description
Description

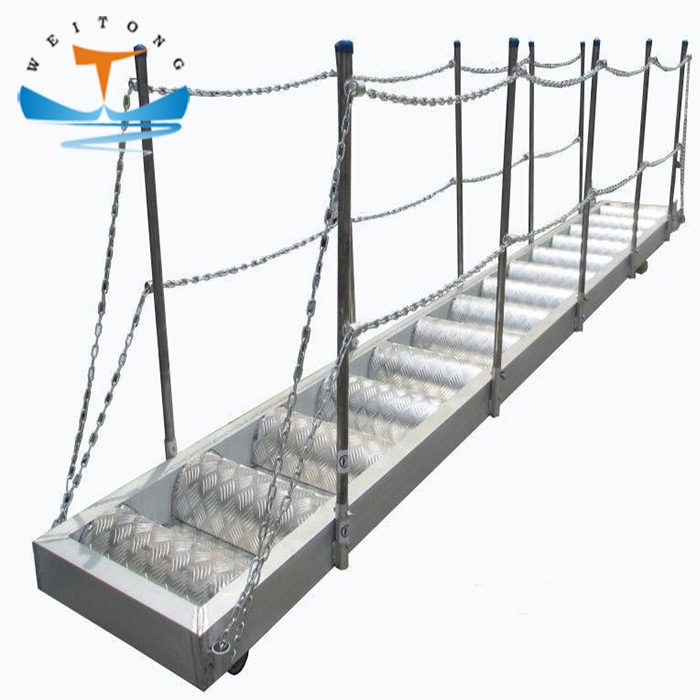

IMPA 232076/232077 Aluminum alloy Wharf Ladder
Made with aluminum alloy, this wharf ladder for boat is detachable. It is applied to embark and disembark for personnel when various types of ships moor alongside a deck. It meets the requirements of CB*3116-82 standard and is approved by these certificates like CCS, BV, ABS, RINA, DNV, NK, GL, LR, etc.

Features:
1. Type: B8, B10, B12.5, B15
2. Length: 4m-15m
3. Light weight and easy to move
4. Approved by JIS F2613-1976
5. Customized sizes
6. OEM service available


Size:
A Type Size mm Weight(kg)   B Type Size mm Weight(kg)
L l H h L1 L2 H h
A8 8000 3200 350 180 182 B8 4000 4000 350 180 205
A10 10000 4830 500 250 221 B10 5000 5000 500 250 244
A12.5 12500 4830 550 300 296 B12.5 6250 6250 550 300 319
A15 15000 7230 750 500 362 B15 7500 7500 750 500 388


The length and the width are customerized. But the standard width is inside 600mm, outside 700mm. The rail height is fixed 1000mm
