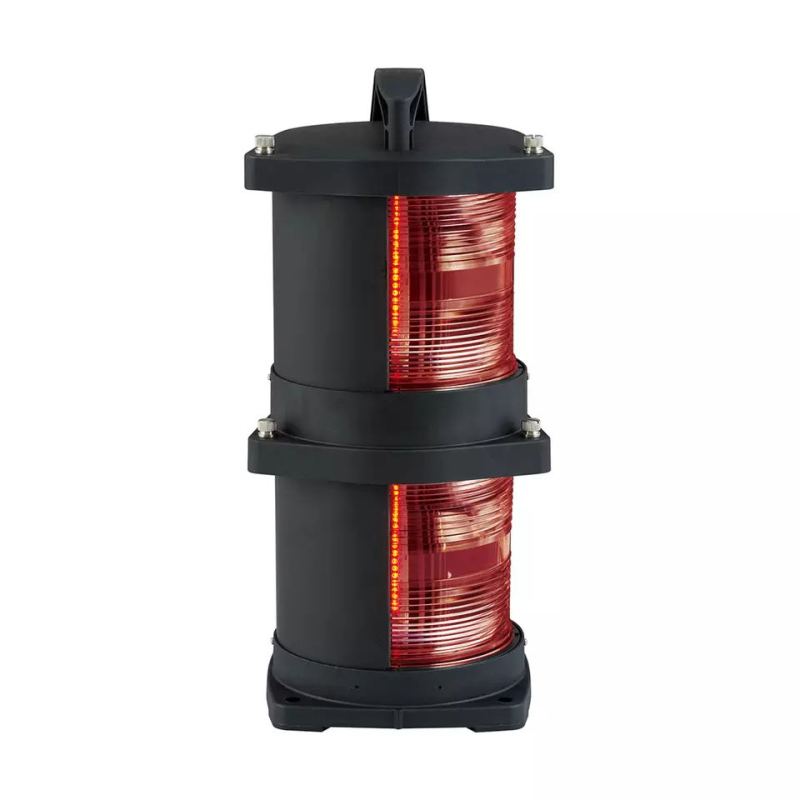

Double Deck Boat LED Port Light

Item No.: 01370
Weitong Marine offers Single Deck Navigation Signal Light in high quality with reasonable price and best service. If you are interested in the item, pls don't hesitate to contact us for more details.
Description
Description
Double Deck Boat LED Port Light
The Navigation Signal Light used to the ship with length 50M or above as lamp signal liaison when night navigation.
Standards
1. Confirm to the international regulation for preventing collision at sea, 1972 and grade entry norms for steel ships.
2. Confirm to the International Standard IEC60598-1-2008.
3. Confirm to the standard of marine electric signal light’s technical condition GB/T 3028-2012
Features
1. Easy to Install and replace the bulb with a leakage hole at the bottom.
2. The shell is made of engineering plastic, corrosion resistance and impact resistance
3. The shade is made of polycarbonate, UV Resistance and non-discolouring color.

Specification
Name
Type

Visibility

Level
arc

Lamp
Holder and bulb

Protection Class

Color

Material

Weight
         (kg)




Double-deck starboard light

CXH1-101PL




3n.m




112.5°












24V/60W
110V/65W
220V/65W
B22D











IP55


double-deck signal light protection class IP56



green


PA+GF


6.2

CXH1-10B2


Steel


8

CXH1-101P
PA+GF

5




Double-deck port light



CXH2-101PL




3n.m




112.5°



red
PA+GF

6.2

CXH2-10B2


Steel


8

CXH2-101P
PA+GF

5




Double-deck masthead light



CXH3-101PL




6n.m




225°



transparent
PA+GF

6.2

CXH3-10B2


Steel


8

CXH3-101P
PA+GF

5




Double-deck stern light

CXH4-101PL




3n.m




135°



transparent
PA+GF

6.2

CXH4-10B2

Steel



8

CXH4-101P

 PA+GF

5




Double-deck all-round light

CXH6-101PL

 3n.m


 360°



Red green transparent
PA+GF

6.2

CXH6-10B2


Steel


8

CXH6-101P
PA+GF

5
