Name: Electric One Drum Mooring Winches
Brand: WEITONG MARINE
Availability: InStock
Rating: 5 (1 reviews)

Home > Marine Deck Equipment > Marine Winch

Description

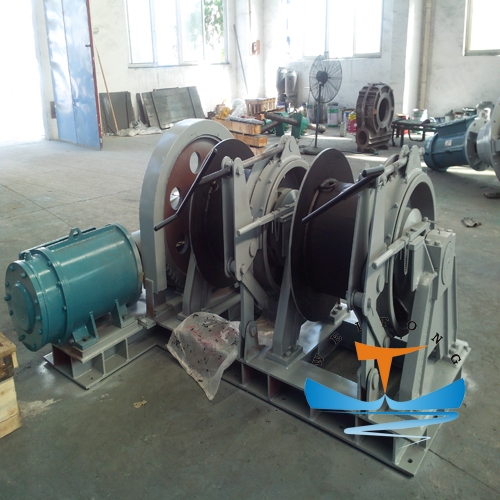

Mooring Winches Marine Drum Winch
Weitong Marine offers a wide range of Marine Windlass Winch for different applications, such as electric motor or hydraulic motor are both availble. We support customization service as per your requirment/drawing.
Our Winch has the advantages of compact structure, small size, light weight, beautiful appearance , the performance has good safety, high efficiency, large starting torque, good low-speed stability, low noise, reliable operation, etc.
Feathures
1. Have a quality management system compliant to ISO9001 or environmental management system compliant to ISO14001
2. Design produce ability
3. Rigorous inspection including incoming inspection,flaw detection etc.
4. Advanced facility
5. Simple installation and safe operation
6. Provide professional customization service according to client's requirements
7. Moderate price and professional service
Electric One Drum Mooring Winches Specification

Electric Mooring Winch
Drum load (KN)	Speed (m/min)	Dia of Rope (mm)	Capacity of Rope (m)	Motor Power(KW)
5	12	8	100	3/1.2
10	12	10	150	4.3/1.7
20	12	15	150	8.5/3.5
30	15	16	150	11/11/7.5
40	15	18	150	16/16/11
50	15	20	180	22/22/16
75	15	26	180	30/30/22
80	15	26	200	30/30/22
100	15	28	200	45/45/30
125	15	30	200	45/45/30
150	15	32	250	45/45/30
160	15	32	250	60/60/45
200	9.6	40	250	60/60/45
250	9.6	44	250	60/60/45
315	7.8	52	250	60/60/45
350	7.8	54	250	85/85/64
400	7.8	56	250	85/85/64
450	7.8	56	250	85/85/64
500	7.8	58	250	85/85/64
560	6	64	250	85/85/64
600	6	64	250	85/85/64
650	6	70	250	85/85/64
1000	4	85	250	85/85/64
1200	4	95	250	120/120/90
1500	4	95	250	150/150/72
1800	4	95	250	150/150/72
2000	4	100	250	180/180/135
