Explosion Proof LED Marine Pendant Light

Item No.: 02115
Weitong Marine offers kinds of Explosion-proof Pendant Lights in high quality with reasonable price and best service. If you are interested in the item, pls don't hesitate to contact us for more details.

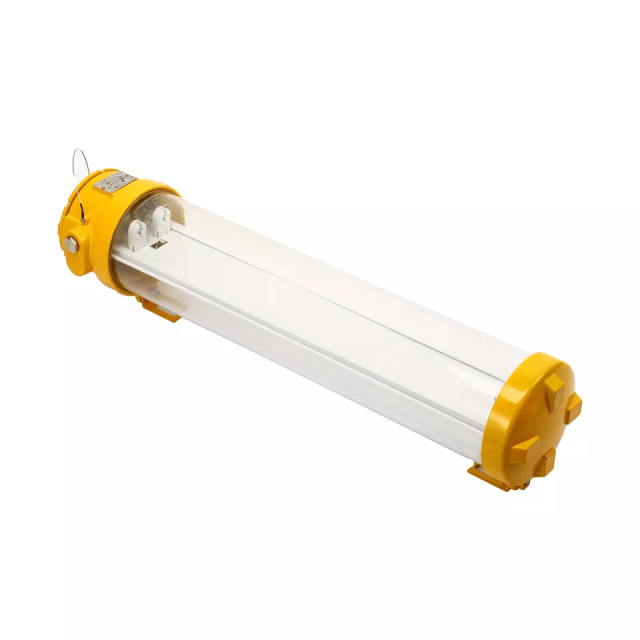

Explosion Proof LED Marine Pendant Light

Explosion-proof Pendant Lights can be used reliably in the dangerous explosive place(zone1,zone2) ,  also fit the operation illumination in corrosive area. The shell adopts stainless steel or castaluminum, and transparent lampshade adopts glass or polycarbonate.
The shell adopts good quality stainless steel, good quality PC lampshade, with two glands, adopt fluorescent lamp.
he light adopts hang-type installation, and it is covenient to raplace the light-tube ect.
The lamp body adopts seal structure, has high waterpoof performance and anticorrosion performance.
All the Marine Explosion Proof Lights are approved by CCS

Explosion Proof Marine LED Pendant Light

The scope of application Suitable for illumination in ships,oil extraction platforms,chemical industries and zone 1 or 2 filled with explosive gas.
Type CFY20-L CFY20-EF
Explosion proof mark Ex d IIC T6 Gb
Rated voltage AC100-240V 50/60Hz AC100-240V 50/60Hz DC24V
Power  2 x 8 W 2 x 8 W 3W
Power factor 0.9
Illuminant LED
Illuminant color White
Illuminant life 50000h
Luminous flux 1600lm 1600lm 300lm
Color temperature 3000-6500k
Protection class IP66
Cable diagram 13-Ø14
Installation Ceiling type,Hang pole type,Vertical stick type
Ambient temeprature –20 ~ +45
Light body material Stainless steel
Shade material PC
Weight 11.5kg
