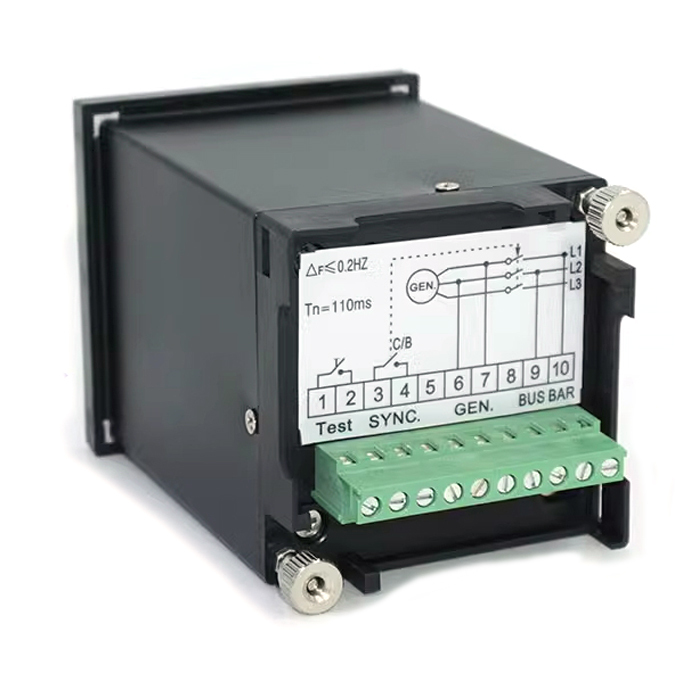

1.Type:AH72-SM、F72-SM、Q72-ZS/B
2.It is mainly used in the grid connected operation of generator sets in various ship power stations .
3.Automatic detection of frequency difference and phase difference,When frequency difference is lower than a certain setting and phase
difference almost reaches 0 degree,it send cosing signal to fulfill automatic grid-connected.
4.voltage:Ac(100V、220V、380V、400V、415V、450V)士10%。
5.Ambient temperature range: -25'℃ to +55℃ 。
6.Housing protection: IP44。
7.Frequencyrange:50HZ,60HZ.
8.Vibration resistance: 2-100HZ≤0.7g。
9.Dielectric test: Ac2.6KV,50HZ,1min.
10.Consumption:≤3VA。
