Name: High Holding Power Matrosov Anchor
Brand: WEITONG MARINE
SKU: 00290
Availability: InStock
Rating: 5 (1 reviews)

Home

Description

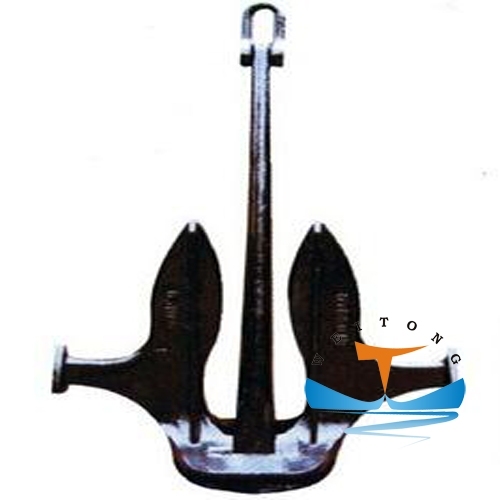

High Holding Power Matrosov Anchor
Matrosol Anchor is one of High Holding Power Anchor, used for marine and offshore filed, the material is high grade casting steel, UT and MT Test and other testing assure high quality and good stability.
Material: Casting Steel
Weight: from 125KGS to 1500KGS
High Holding Power Matrosov Anchor Certificate: ABS,LR,NK,DNV,GL,RIS,BV,KR, CCS
High Holding Power Matrosov Anchor Specification

Nominal Weight (KG)	Size(mm)
	A	B	C	D	E	＠
25	130	570	690	385	214	28-30
35	148	620	760	420	230	30-32
50	170	680	840	480	250	30-32
75	190	770	950	540	270	30-32
100	210	830	1060	590	290	30-32
125	226	870	1130	630	310	30-32
150	242	910	1190	670	330	30-32
200	270	980	1300	740	370	30-32
250	294	1040	1380	800	400	33-37
300	312	1090	1480	850	430	33-37
400	342	1190	1630	930	480	33-37
500	366	1280	1750	1000	520	33-37
650	400	1385	1910	1090	565	33-37
750	418	1450	2000	1140	590	33-37
1000	452	1570	2170	1240	630	33-37
1250	488	1660	2280	1300	660	33-37
1500	515	1715	2370	1350	675	33-37
