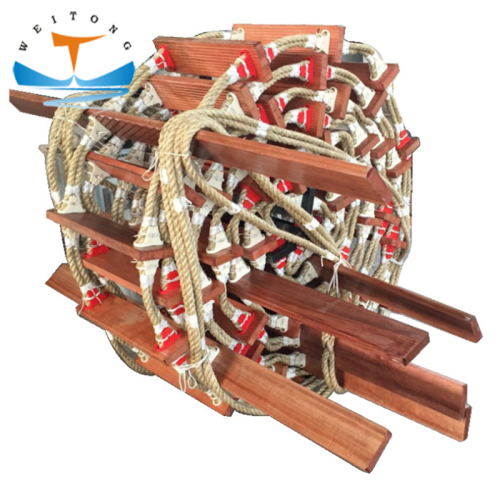

IMPA 232002-2 15M Type A Solas Marine Pilot Ladders

Item No.: 01524
Weitong Marine offers kinds of quality Marine Pilot Rope Embarkation Ladder at reasonable price with outstanding service. pls feel free to contact us for more details.
Description
Description
IMPA 232002-2 15M Type A Solas  Marine Pilot Ladders

Types of Step:
Type Material Weight/pc
A Aluminum 0.95
B Wood 1.9
C Rubber 3.5

Marine Pilot Rope Embarkation Ladder Specification
No of step Length of rope ladder (mm) Weight (kgs)
Aluminum Wood
10 3100 25.86 31.56
15 4650 33.47 43.92
20 6200 41.08 56.27
25 7750 48.69 68.64
30 9300 56.3 81
35 10850 63.91 93.36
40 12400 71.52 105.72
45 13950 79.13 118.08
50 15500 86.74 130.44
55 17000 94.35 142.86
60 18500 101.96 155.16
to add each 5 steps length increase 1500 weight increase 7.61 weight increase 12.36

Certificate:

Workshop:
IMPA 232001
