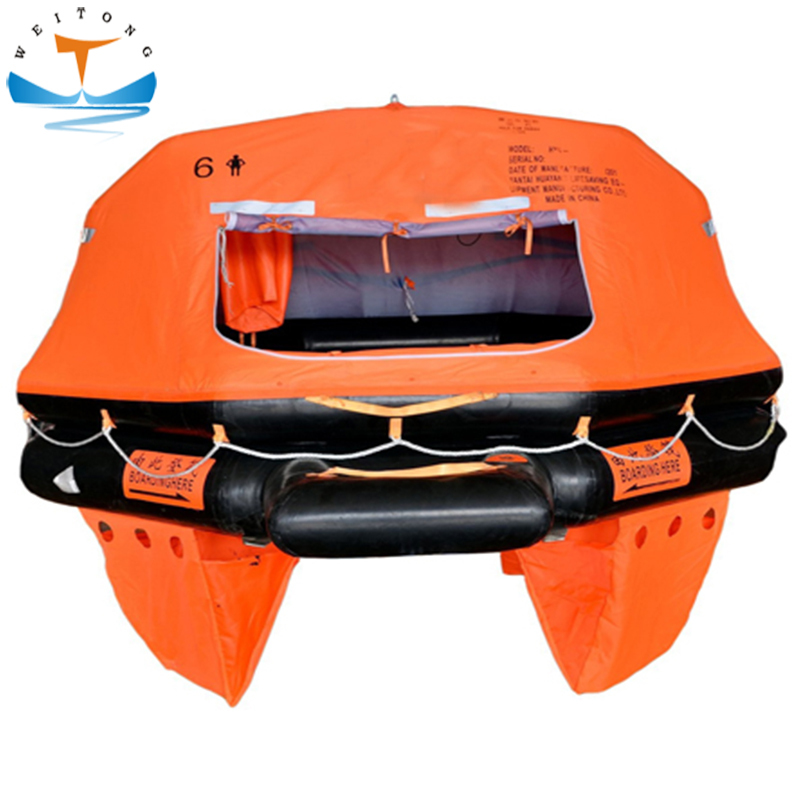

IMPA Code 330101/330102/330103 6/10/16 Men Inflatable Life Raft

Item No.: 02281
SOLAS Approval Throw-over Board Inflatable Life Raft is designed for installing on vessels  in international class I zone and other offshore facilities, or used as a combination with Marine Evacuation System.
Description
Description

 IMPA 330101/330102/330103 6/10/16 Men Inflatable Life Raft

Application:

The liferafts are applicable to vessel navigation in international(class 1) or domestic zone and also used for all kinds of offshore facility lifesaving.

Product standard:

It meets the requirement of "Regulation for the statutory surveys of ships and offshore installations", "Technical regulations for Statutory surveys of sea-going ships engaged on international voyages(2004)" of P. R. C. And SOLAS 74/96 amendment, LSA and MSC. 81(70)Amendmentsfor Testing Of Life-saving Appliance;  MSC. 295(87); MSC. 323(89);

 Inflation method:

After throw-over from ship, the life raft can be inflated and opened automatically. If the ship sinks very fast and the life raft cannot be thrown-over, the raft still can float up from water under the action of Hydrostatic Release Unit and can be inflated and opened automatically

Emergency pack type:A pack or B pack

SOLAS approved life raft:

1. Meet SOLAS regulation;

2. Can provide certificate CCS, GL/EC, ZY, etc...

3. Good service and competitive price.
We supply different kinds of life raft as below:

Category

Type

Capacity (Person)

Certificate

1.Solas Life Raft







Throw Over Board Inflatable Life Raft

6~35

CCS/EC

Throw Over Board Self-righting Inflatable Life Raft

6~125

CCS/EC

Davit-launching Inflatable Life Raft

10~25

CCS/EC

Davit-launching Self-righting  Inflatable Life Raft

25,37

CCS/EC

2.Open Type Life Raft

Open Reversible Inflatable Life Raft

6~152

CCS/EC

3.Canopied Type Life Raft

Canopied Reversible Inflatable Life Raft

25~65

CCS/EC

4.Life Raft for Yacht





Throw Over Board Inflatable Life Raft (ISO 9650-1)

4~12

CCS/EC

Throw Over Board Self-righting Inflatable Life Raft (ISO 9650-1)

4~12

CCS/EC

Throw Over Board Inflatable Life Raft (ISO 9650-2)

4~10

CCS/EC

5.Life Raft for Fishing Boat

Throw Over Board Inflatable Life Raft

6~25

CCS/EC/ZY



The detailed specifications of davit-launching self-righting inflatable life raft:



Type Capacity(person) Weight(kg) Container    dimension (mm) dimension(mm)
      Solas A Pack Solas B Pack
HY-12 12 142 1350*700 1285*670
HY-16 16 175 1470*750 1350*700
HY-20 20 205 1680*770 1470*750
HY-25 25 255 1660*820 1470*750
HY-32 32 315 1875*850 1680*770
HY-37 37 345 1875*850 1680*770
HY-39 39 355 1875*850 1680*770
