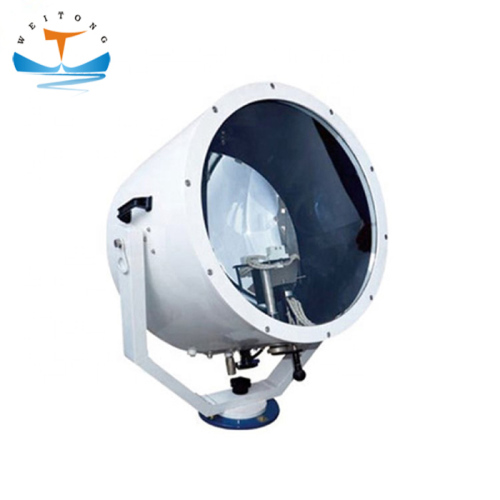

IMPA 370505/370506 2000W/3000W Marine Suez Canal Search Light

Item No.: 01575
Weitong Marine offers a variety of Marine Search Lights-Suez Canal Search Light TZ5 in high quality with reasonable price and best service. If you are interested in the items, pls don't hesitate to contact us for more details.
Description
Description
IMPA 370505/370506 2000W/3000W Marine Suez Canal Search Light
Applied to illuminations of ship pass through the Suez canal and the narrow sea-route when night navigation, can search and illuminate the obstacle on the surface.
Feature
*The lamp body adopts good quality aluminium alloy, the weight is light, good quality toughened glass lampshade.
*Design with two bulbs structure, has rotary switch inside, can change between the bulbs under the electricity.
*Two hemisphere reflector, can adjust the reflect effect between the±5 degree horizontally on.
*Equipped safe vent-valve under the lamp canister, can ensure the air pressure balance in and out the lamp canister.
*The lamp can bend for±30 degree, adjust ±180 degree horizontally.
*Parallel light-beam, far illumination distance
*Conform to GRADE ENTRY NORMS FOR STEEL SHIPS and the request of SUEZ CANAL NAVIGATION RULES.

Suez Canal Search Light TZ3-A Specifications
Type Voltage Power Lamp Holder illuminant Luminous flux (lm) Material Protection  Class Cable Outside Diameter Weight
TZ1 DC110V/AC220V 1000W for special sphericity mercury  xenon lamp 60000   IP55 Ø10-Ø12 58.5kg
use
TZ1-A DC110V/AC220V 1000W for special sphericity mercury  xenon lamp 60000   IP55 Ø14-Ø16 90kg
use
TZ1-N 220V/50HZDC110V 1000W for special sphericity mercury  xenon lamp 60000   IP56 Ø10-Ø12 58.5kg
use

TZ1-AN 220V/50HZDC110V 1000W for special sphericity mercury  xenon lamp 60000   IP56 Ø14-Ø16 90kg
use

TZ3-A DC110V/AC220V 3000W G19 Incandescent focus bulb 52800   IP55 Ø14-Ø16 227kg
Suez Canal Search Light TZ5 220V/50HZ220V/60HZ 3000W GY16 Tungsten halogen lamp 80000   IP56 Ø12-Ø14 29kg
2000W 53000
