Name: IMPA 653101/653102/653103/653104/653105/653106 Stainless Steel Glycerin Filled Marine Pressure Gauge
Brand: WEITONG MARINE
SKU: 02015
Availability: InStock
Rating: 5 (1 reviews)

Home > Marine Instrument > Marine Pressure Gauge

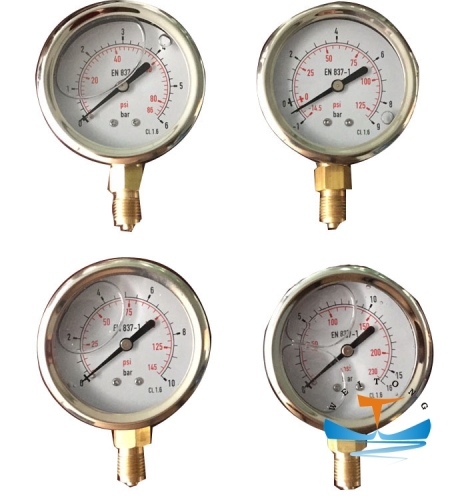

IMPA 653101/653102/653103/653104/653105/653106 Stainless Steel Glycerin Filled Marine Pressure Gauges

Description

IMPA 653101/653102/653103/653104/653105/653106 Stainless Steel Glycerin Filled Marine Pressure Gauges

Name :	Glycerin Filled Pressure gauge (SS/BRASS)
Model	117CL
Diameter	2.5"(63mm),4"(100mm)
Accuracy	±1%,±1.6%
Range	-30”Hg-0 (vacuum) -30”Hg-24bar(Compound) 0-0.6 to 1000bar
Case	Stainless steel with roll ring
Wetted Parts	copper alloy
Specifications	Nominalsize: 2.5”(63mm),4”(100mm),6“(150mm) Accuracy: +-1.6%of full scales for 2.5”( 63mm) +-1.0% of full scales for4” (100mm),6”(150mm) Range available(nostock): 0...0.6to0...1000 bar or all other equivalent vacuum or combined pressure and vacuum ranges
Pressure limitation	2.5”(63mm):Steady: 3/4xFull scale value luctuating:2/3x Full scale value Shorttime:Full scale value 4”(100mm),6”(160mm) Steady: Full scale Fluctuating: 0.9xfull scale value Short time:1.3x full scale value
Application	Sturdy Industrial Pressure Gauge designed in compliance with the Operational safety requirements of EN837-1 Reliable Pressure Gauge for the machine and plant construction industry as well as building services industry For Gaseous and Liquid Media that are not highly viscous or crystallising and will not attack cooper alloy parts Proven in refrigeration technology
Special Features	LongserviceLife,Robust Cost-effective and reliable Tocombine with SHUNJAY diaphram seals Scale range sup to0.....1000bar
