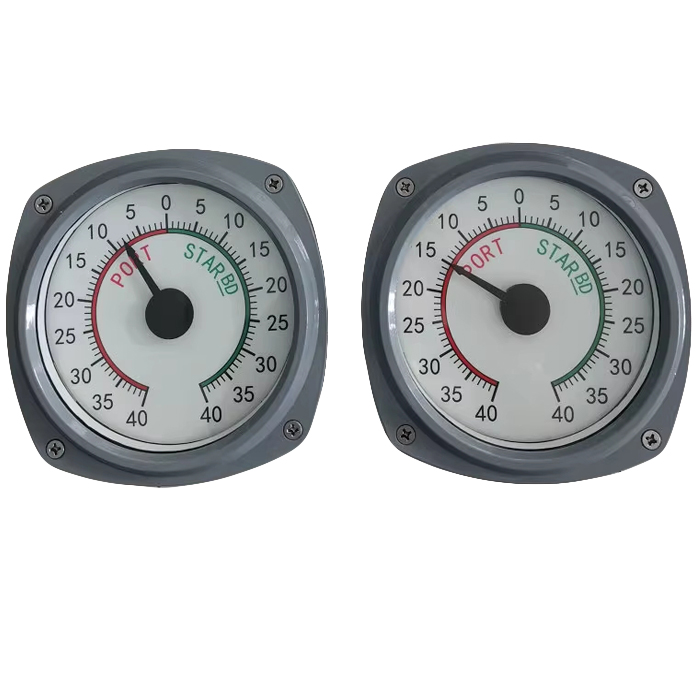

JINZHOU OTY4D-1 Rudder Angle Indicator

Item No.: 03182
JINZHOU OTY4D-1 rudder angle indicator is usually installed in the wheelhouse of the ships to show the actual position of the boats rudder
Description
Description
JINZHOU OTY4D-1 Rudder Angle Indicator

    • Application:shows rudder position of ships, installed in bridge, engine room, steering gear room


    • Related Model:OTN3A-1, OTN4A-1, OQF2D-1,OQF2E-1, OTY4A-1, OSD6A-1, OSD6B-1, etc...


    • Angle Indicator Range:port 40° to starboard 40°


    • Mount Type:wall mounting type


    • Voltage:AC220V, AC110V, DC24V


    • Angel Indicator Size:100mm, 130mm, 160mm, 200mm


    • Lighting Dimmer:with backlight dimmer


    • Rudder Angle Indication:we offers rudder angle incication systems like 4-20mA current loop system, ±10V system, CAN systems.


    • Features:outdoor bridge wing mounting, high vibration resistance, superior accuracy


    • Protection:IP56


    • HS Code:8543709990


    • Dimension:250x250x120mm


    • Weight:4Kg
