Name: JIS F2006 SC Open Type A Cast Roller Chock
Brand: WEITONG MARINE
Availability: InStock
Rating: 5 (1 reviews)

Home > Marine Mooring Equipment > Marine Mooring Chock

JIS F2006 SC Open Type A Cast Roller Chock

Description

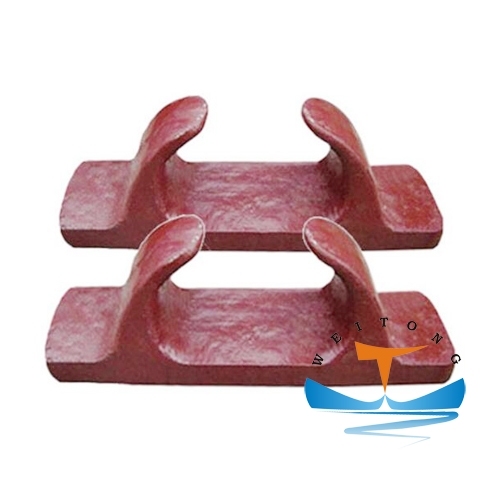

JIS F2006 SC Open Type Roller Chock
FC Type Open Chock JIS F2006 is made of Cast Steel, welded to the ships deck. Its surface is in contact with the rope in use been finished smoothly. Weitong Marine suply various kinds of Marine Roller Chocks for your applications. Pls don't hesitate to email us at: [email protected]
SC Open Type Chock JIS F2006 Certificate: ABS,GL,RINA,DNV, etc.

Specification:

Max.cable diameter	Max girth of hemp cable	L	B	H	h	A	d	Screw the amount	Weight kg
	50	150	35	37	10	120	11	3	0.5
	60	180	40	43	12	144	13	3	0.8
8.7	75	220	55	59	15	184	13	3	1.4
11.5	90	300	75	82	20	250	17	3	4.2
13.5	100	350	90	100	25	300	17	4	7
15.5	125	420	105	120	25	360	21	4	12
19.5	175	500	115	140	30	430	23	4	18
22.5	200	600	150	160	35	520	25	6	34
26	225	700	180	190	40	620	25	8	48
30.5	250	750	190	210	45	660	30	8	60
33.5	275	800	200	220	45	710	30	8	75
37.5	300	900	220	240	50	800	33	8	100
43.5	325	1000	250	250	50	900	33	8	132
48.5	350	1100	270	270	60	980	39	8	168
