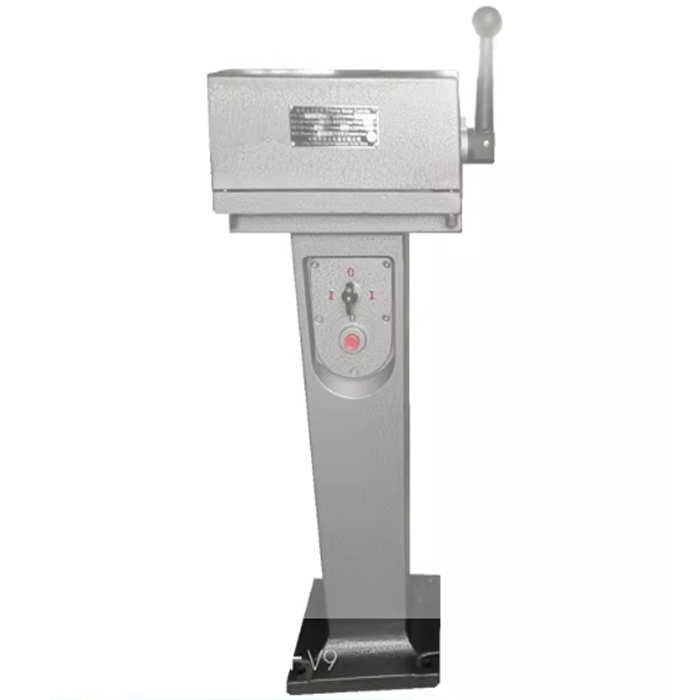

LK911-125A/LK911-126A Marine Master Controller

Item No.: 03413
The LK 911 series marine main command controller is suitable for all kinds of control circuits, in conjunction with the electrical control box, to control the start, run, shift, reverse and brake of all kinds of anchoring machinery motors.
Description
Description
LK911-125A/LK911-126A Marine Master Controller

    • The LK911-A series of marine master controllers controls AC and DC circuits. The electrical control box controls the starting, running, speed changing, reversing and braking of motors used on winch lass machinery devices.

      Application environment:
      Ambient temperature: -25℃- 45℃
      Inclination, Swing: ±22.5°
      There are influences of shock, vibration, salt mist, fungus and humid air on the sea when the ship is in normal operation.
      The structure of the master controller is simple and stable, made of silver alloy and encased in aluminum alloy.

      Main Technical Data:
      Housing protection class: IP56
      Rated voltage: AC≤440V,  DC≤ 220V
      Conventional thermal current: 10A
