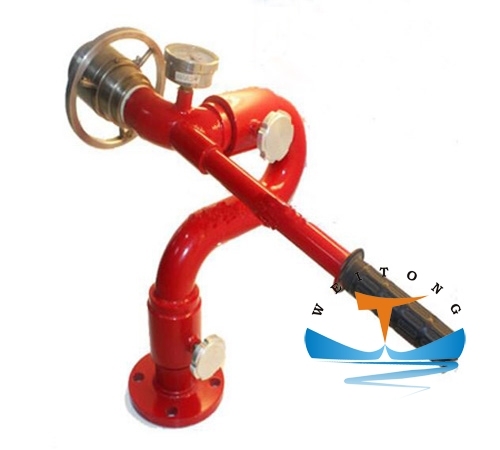

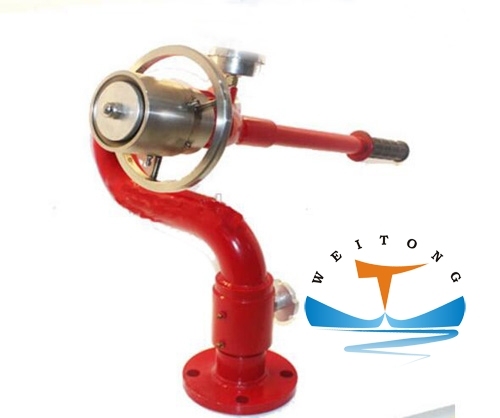

Manual Fire Monitor

Weitong Marine offers Manual Fire Monitor with good quality and competitive price. If you are interested in the item, pls feel free to contact us for more details.
Manual Fire Monitor
Marine Fire Fighting Monitor is one kind of fire fighting equipments used to extinguish fire at a long distance by water or foam in various places such as ships, offshore platforms, port and other places. Wetong Marine offers different kinds of Marine Fire Fighting Monitor for your Option.
The Marine Fire Monitor offered by Weitong Marine has properties of large capacity, long throw range, high reliability and convenient operation.
The fire monitor is composed of monitor body, spray assembly, operator and accessories. Monitor body can rotate in horizontal and vertical. The body is fixed or portable, and can be operated by lever, hand wheel, electric unit or hydraulic unit. The spray assembly, such as nozzle or foam tube is an important part of monitor. The nozzle is used for spraying water, and AFFF solution. The foam tube is used for spraying protein foam solution. The operator such as hand wheel, electric unit, and hydraulic motor, is chosen by owner.
We supply Manual/Handle Operated Fire Monitor, Electric Fire Monitor, and the medium could be water(PS), Foam(PP), water-Foam(PL) etc.
Manual Fire Monitor Specification
Model Rated
Flow( L/s)
Fire Fighting
Operation Style Capacity Inlet Outlet Pressure Rotation
50  50 foam Hand level 2000L/min DN50
16bar Horizontal
Monitor Body:
Stainless steel,
Carbon steel
Aluminum alloy.

hard aluminum alloy
Stainless steel,
Carbon steel
Aluminum alloy.

Red RAL3000
50 50 water Hand round
50 Foam/water Hand level
With jet/
Spray nozzle
65 65 Foam/water Hand round 2400L/min DN65
80 80 foam Hand round 4000L/min DN80 PN16
80 Foam/water Hand round
80 Foam/water Hand level
100 100 water Hand level 6000L/min DN100 PN16 Square
100 foam Hand round
100 water Hand round
125 125 Foam/water Hand round 9000L/min DN150 PN16 Flange
150 150 Foam/water Hand level 18000L/min DN150
150 Foam/water Hand round
150 Foam/water Hand round
200 200 Water Hand round 26000L/min DN200 PN16
250 250 Water Hand round 32000L/min DN250 PN16
