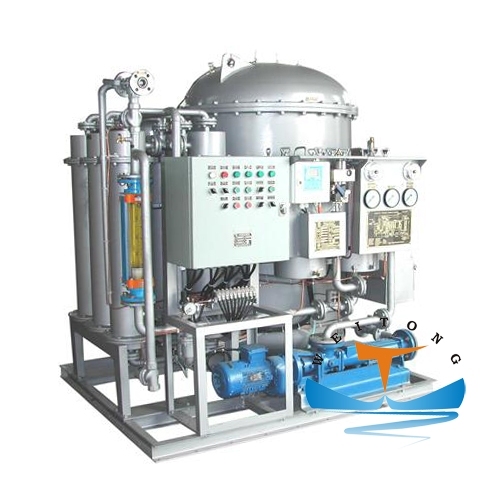

Marine Bilge Water Separator

Weitong Marine offers  Marine Bilge Water Separator in high quality with reasonable price and best service. If you are interested in the item, pls don't hesitate to contact us for more details.
Marine Bilge Water Separator
Marine Bilge Water Separator strictly comply with the International IMO Marine Environment Protection Committee-MEPC.107(49) resolution specifications, is a new production based on the accumulation of years of development, and advanced technology from foreign countries. The Oil water separators  can be used for treatment of bilge oil water, and also other areas. Oil water separators  can also deal with the sewage that contents high quantity emulsified oil. The performance is in accord with the roles of IMO and our country’s ship and mining enterprises which are concerned with the ship’s water discharging.
Marine Bilge Water Separator is of 9 types with the capacity from0.25m3/h to 5.00 m3/h,The smallest type is YWC-0.25 which can be installed on ship less than 1000DWT. The biggest type is YWC-5.00 which can be installed on ship more than 300 thousand DWT. This separator can also be used in industrial and petroleum, besides in ship vessels. The effluent oil content from YWC can meet any standards of Environment Bureau in international.

Marine Bilge Water Separator Specification

YWC-0.25 YWC-0.50 YWC-1.00 YWC-1.50 YWC-2.00 YWC-2.50 YWC-3.00 YWC-4.00 YWC-5.00
Rating/ MAX Capacity (m3) 0.25/0.31 0.5/0.62 1.0/1.25 1.5/1.87 2/2.25 2.5/3.12 3/3.75 4.0/5.0 5/6.25
Power of Pump (kw) 0.75 1.1 1.1 1.1 2.2 2.2 3 3 3.75
Electric Heater Power (kw) 1KW 3KW option option option - - - -
Steam Heater (m2/kw) - - 1/30 1/45 2/60 2/75 3/90 4/120 5/150
Electrical System AC 380V、50Hz、3φ/ AC 415V、50Hz、3φ/AC 440、60Hz、3φ/AC 480V、60HZ、3φ
Power of The Electric Motor 0.37kw 0.55kw 0.75kw 1.1kw 1.1kw 1.5kw 1.5kw 2.2kw 2.2kw
Suction Head Not more than 6m-H2O
Pressure of The Discharged Water 5-10m-H2O
15ppm Bilge Alarm Included
Base(mm) 1000*600 1100*690 1050*1080 1100*1130 1900*1120 1900*1120 1700*1500 2280*1700 2590*2000
Height (mm) 1320 1460 1500 1660 1700 1900 2020 1820 1900
Dry/Wet Weight 300/450 600/800 800/860 1060/1810 1260/2260 1500/2800 1800/3200 2100/3900 2500/4600
Application Ship Vessel (DWT) <1000 1000∼5000 5000∼10000 10000∼30000 30000∼50000 50000∼100000 100000∼200000 100000∼300000 >300000
