Marine Bolt Porthole A0/A60 Fireproof Side Scuttles

Item No.: 00907
Weitong Marine offers kinds of quality Marine Window A60 Fire Proof Side Scuttle at reasonable price with outstanding service. pls feel free to contact us for more details.
Description
Description

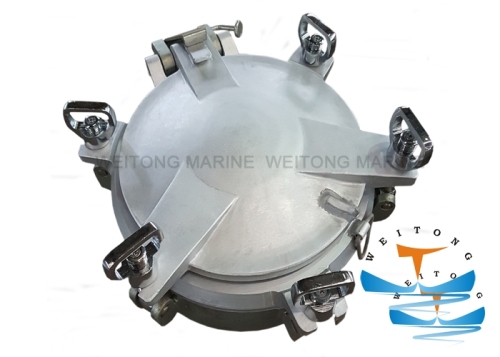

Marine Porthole A0 A60 Fire -proof Side Scuttles
Fireproof Side Scuttle (Firepoof Porthole) is a kind of fire resistant side scuttles made of steel, aluminum, stainless steel. It can be installed by welded or bolted; suitable for accommodations & other marine instructments with A60 fireproof requirement.
Standard: GB/T14413-93, IMO Res MSC 61(67), IMO Res. A.754(18)
Fire protection class: A60
Main Material:
Frame: Steel
Glass: Fireproof Glass
Marine Window A60 Fire Proof Side Scuttle Specification
Nominal Size D Hole Size of Casing Wall Size of Outside Main Glass Thick Size of Glass
D2 t D3
  Type A Type B   Heavy Medium Type A Type B
Φ200 Φ383 Φ425 Φ422 10 8 Φ240 Φ472
Φ250 Φ433 Φ475 Φ472 12 8 Φ290 Φ522
Φ300 Φ483 Φ535 Φ522 15 10 Φ340 Φ572
Φ350 Φ533 Φ575 Φ572 15 12 Φ390 Φ622
Φ400 Φ583 Φ625 Φ622 19 12 Φ440 Φ672
Φ450 Φ633 Φ675 Φ672 19 15 Φ490 Φ722
Weitong Marine provides all kinds of deck marine windows:
Fireproof Window
Fixed Rectangular Window
Marine Side Scuttles (also called as Porthole window)
Skylight
Aluminum Alloy Sound Proof Window
Aluminium Alloy Sliding Window
If you are looking for any of marine windows,doors, covers or ladders, pls don't hesitate to inquiry.
