Description

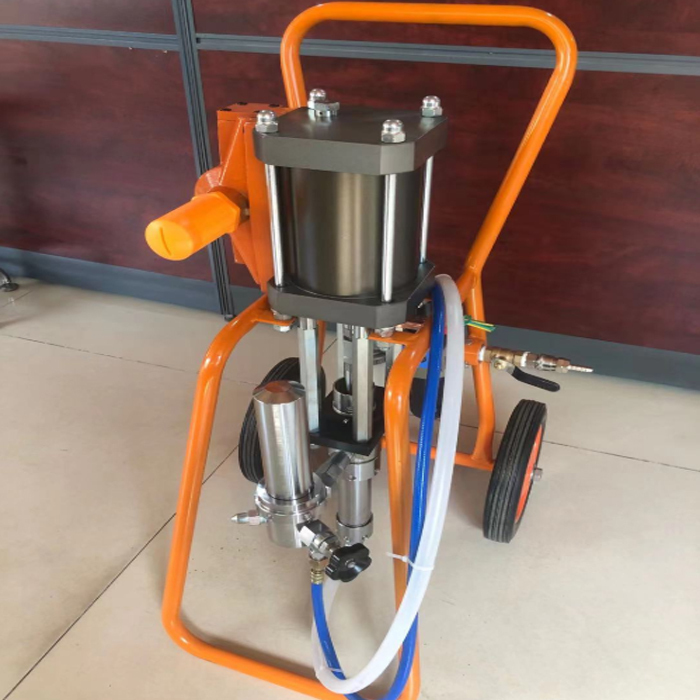

Marine High Presssure Airless Sprayer

Pneumatic high-pressure airless sprayer GP1234 Introduction:

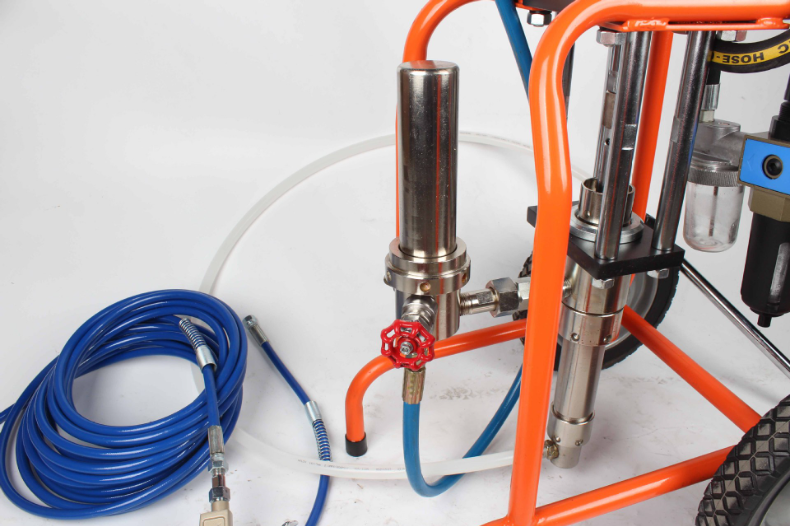

The spray gun does not require compressed air for atomization, but directly atomizes with the airless nozzle, so there is less waste of liquid material scattering. The liquid material is concentrated and scattered less, so the spraying efficiency is more than 2 times faster than ordinary air spraying. The main components of the airless spraying equipment include a liquid mixing barrel, a high-pressure delivery pump, a primary filter regulator and a secondary smoothing regulator, a high-pressure paint pipe, and an airless spray gun.

Features of pneumatic high-pressure airless sprayer GP1234 for ships:

1. Less liquid material scattering waste, environmentally friendly and saves liquid material

2. Spraying efficiency is more than 2 times faster than ordinary air spraying, efficient and labor-saving

3. Some models can directly spray high-viscosity liquid materials, no or less diluent, good environmental protection

4. Industrial-grade airless spray equipment is driven by pneumatic motors, which do not heat up after long-term high-intensity work, have low maintenance rate and are safe and explosion-proof

5. Industrial-grade airless spray equipment has a large-displacement pump body. When connected to the same spray gun, the pump has a low operating frequency, less wear and low maintenance rate

6. The materials and processing technology of industrial-grade airless spray equipment adopt high standards and are more durable than ordinary machines

7. Industrial-grade airless spray equipment is mostly driven by air motors, which will not heat up or be damaged when the load is stuck or overloaded

8. Industrial-grade airless spraying equipment is equipped with a primary filter stabilizer and a secondary smoothing stabilizer, which makes spraying more stable, coating more uniform and coating quality better

9. Industrial-grade airless spraying equipment is equipped with a conical bottom stainless steel barrel and an automatic mixer to reduce liquid waste and reduce color difference

Pneumatic high-pressure airless sprayer GP1234 is suitable for liquids:

Suitable models can spray low-viscosity and high-viscosity liquids. Theoretically, the largest machine can handle liquids with a viscosity of less than 75,000 cp, conventional models can handle liquids below 25,000 cp, and some models can handle liquids below 65,000 cp.

Pneumatic high-pressure airless sprayer GP1234 is suitable for industries:

Ships and marine facilities, steel structures, large locomotives, heavy machinery, general machinery and equipment, containers, general industrial products, construction projects and other industries that require environmental protection, paint saving and efficient spraying.

Pneumatic high-pressure airless sprayer GP1234 system introduction:

1. Equipped with pneumatic automatic mixer to prevent liquid sedimentation and reduce color difference

2. Equipped with conical bottom stainless steel barrel, compared with ordinary flat-bottom barrel, suction is cleaner, less residual material is left at the bottom of the barrel, and liquid is saved

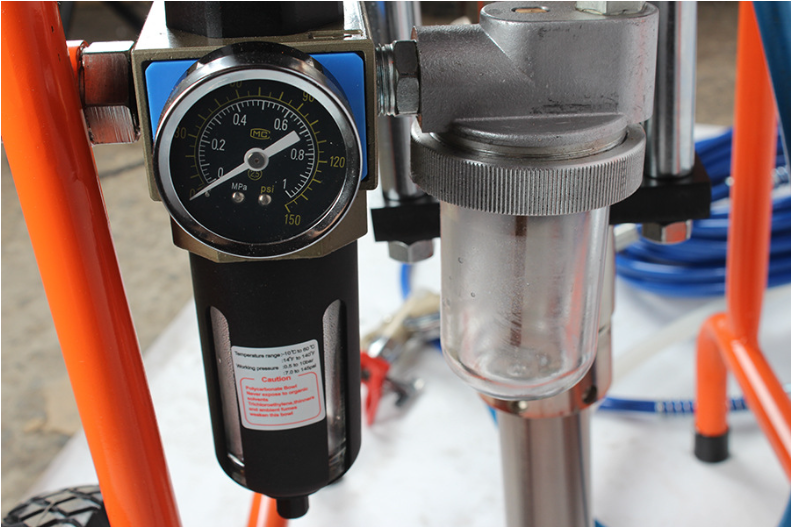

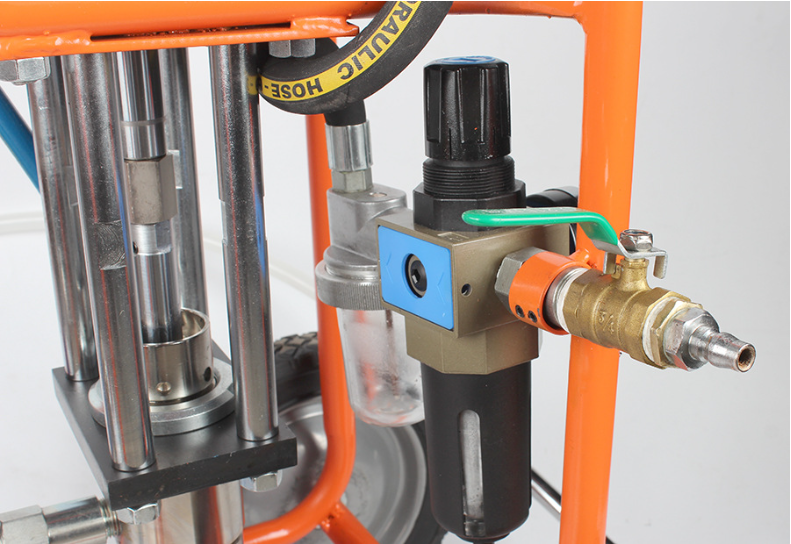

3. Equipped with a first-level filter stabilizer and a second-level smooth wave stabilizer, spraying is more stable, coating is more uniform, and coating quality is better

4. Some models can be equipped with ultra-soft high-pressure paint pipes, the spray gun is flexible and easy to operate, reducing operator fatigue and improving work efficiency

5. German original nozzle, first-class spraying effect, long service life

6. Air motor drive, long-term high-intensity work without heat, low maintenance rate and safe explosion-proof

7. Large displacement pump body, the liquid pump has a low operating frequency, less wear and low maintenance rate under the same spray gun

8. The materials and processing technology of the equipment adopt high standards and are more durable than ordinary machines

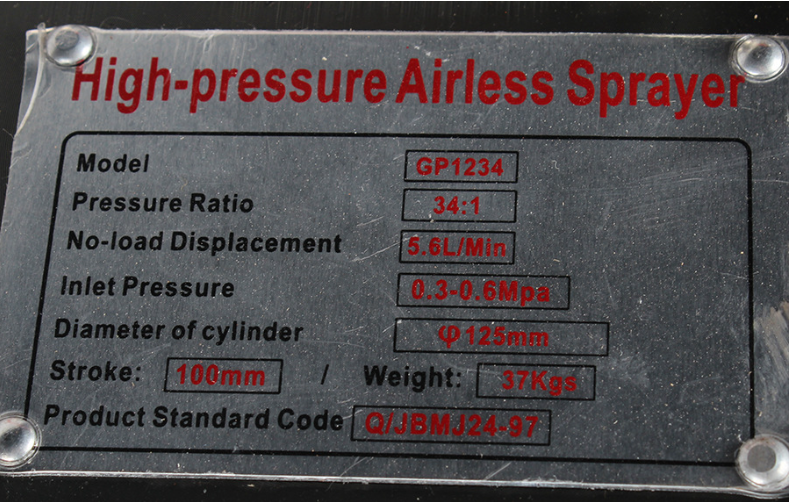

Brand: SEMPO Model: GP1234

Pressure ratio: 34:1 No-load displacement (L/min): 5.6

Intake pressure (MPa): 0.3-0.6 Air consumption (L/min): 180-2000

Cylinder diameter (mm): Ф125 Machine weight (kg): 37KGS

Note: No-load displacement refers to the paint displacement under no-load pressure Applicable to: Conventional liquid materials with medium and low viscosity

IMPA CODE	DESCRIPTION	UNIT
270106/270107/270108	Air-powered airless paint sprayers 23:1/30:1	Set
