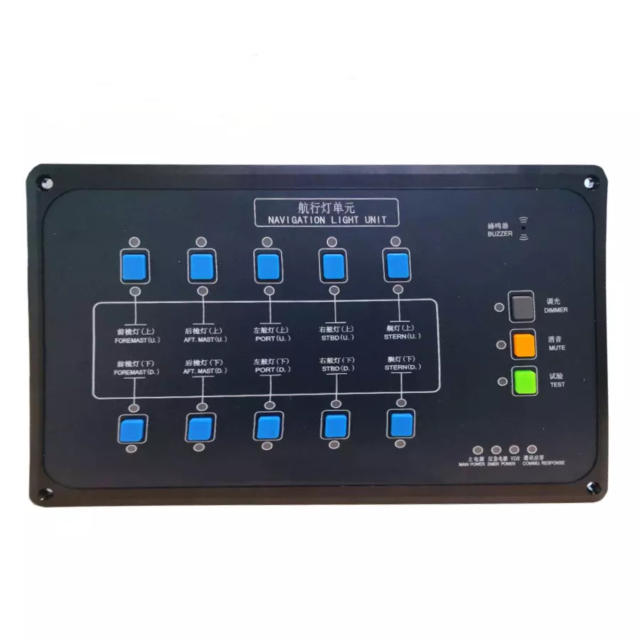

Marine Navigation Light Controller
Standard
1. CCS GRADE ENTRY NORMS FOR STEEL SHIPS 2015, Chapter2, Part4 and it's Amendments.
2. IMO Resolution MSC.253(83) Adoption of the Performance Standards for Navigation lights,
Navigation Light Controllers and Accociated Equipment.
Function
Navigation Light control device is mainly used for monitoring and control
the navigation lights during ship navigation.
Backup, Circuit Alarm, Power failure Alarm, Brightness adjustable, Flash Interface, Self-check,Communication Interface,
Communication failure Alarm.
Technical Data
Power Supply: AC220V±10% or DC24V±10%
Max Number of outputs: 37 Road
Single max output power ≤65W (Incandescent Bulbs)
Serial Port: Data format confirm to NMEA 0183 protocol, Baud Rate:9600
DimensionOpening Size:280*188mmPosition Size:290*190mmOverall Size:310*210*100mm
specification:
Place of Origin:
|
China
|
Protection Class:
|
IP20
|
Model Number:
|
DK-H
|
Category:
|
Navigation AIDS
|
Voltage:
|
24V/60W;110V/60W;220V/65W
|
Ships From:
|
zhuhai
|
Power supply:
|
220V AC or 24V DC
|
Weight:
|
2.4 kg
|
Product name:
|
Navigation light control panel
|
OEM:
|
Acceptable
|
Body Material:
|
PVC
|
MOQ:
|
1 pcs
|
Packing:
|
Color Box
|
Brand Name:
|
HaihSea
|
