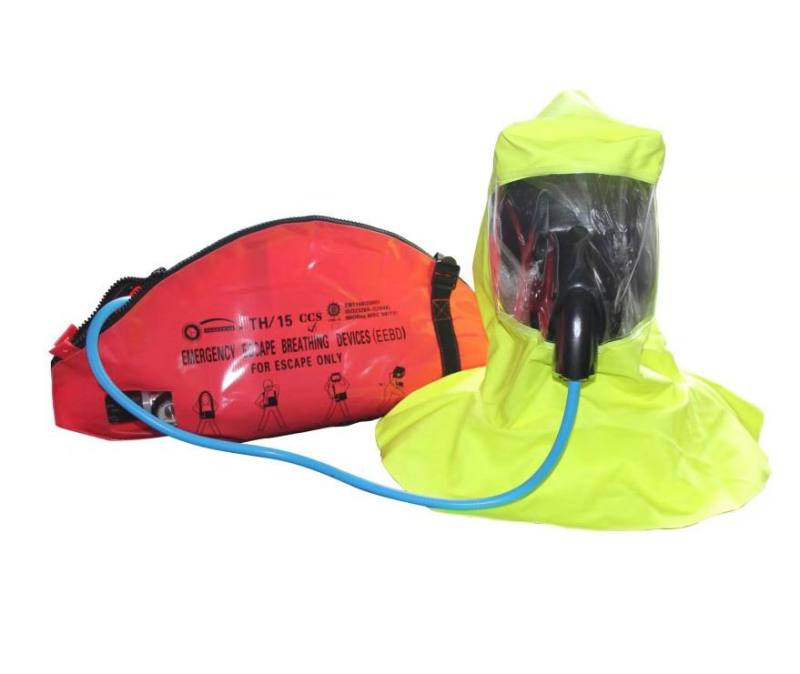

Marine Portable Emergency Escape Breathing Device EEBD

Item No.: 01107
Weitong Marine offers Emergency Escape Breathing Apparatus with good quality and competitive price. If you are interested in the item, pls feel free to contact us for more details.
Description
Description
Marine Portable Emergency Escape Breathing Device EEBD
Emergency Escape Breathing Apparatus is in accordance with the SOLAS 1974 in regulation 13 revised in 2000, all ship shall carry at least two Emergency Escape Breathing Devices (E.E.B.D.) within accommodation spaces for providing respiratory protection in toxic and oxygen deficient atmospheres. On all ships, within the machiner spaces, E.E.B.D.shall be situated ready for use at esaily visible places,which can be reached quickly and easily at any time the event of fire . The location of E.E.B.D shall take into account the alyout of the machinery space and the number of presons normally working in the SPACES .The E.E.B.D. should have at least a duration of seveice of 10 mins and should inculde a hood or full face piece to protect the eyes, nose and mouth during escape, complying with the Fire Safety Systems (F.S.S) Code.Hoods and face pieces should be considered flame resistant and include a clear window for viewing. An unactivated E.E.B.D should be capable of being carried hands-free.

Specification:
10 Minutes Emergency Escape Breathing Apparatus
1.Mainly used in the condition of fire, heavy smoke, poison gas or less oxygen area
2.Pressure reducer's inside pressure: 0.65±0.2MPa
3.Rated working time: 10 minutes EEBD more than 10 min
4.Cylinder's rated working pressure: 21Mpa
5.Cylinder's effective capacity:10 minutes EEBD:2L
6.With CCS certificates
15 Minutes Emergency Escape Breathing Apparatus
1.Mainly used in the condition of fire, heavy smoke, poison gas or less oxygen area
2.Pressure reducer's inside pressure: 0.65±0.2MPa
3.Rated working time: 15 minutes EEBD more than 15 min
4.Cylinder's rated working pressure: 21Mpa
5.Cylinder's effective capacity:15 minutes EEBD:3L
6.With CCS certificates
IMPA Code Type Cylinde Volume(L) Work Pressure(mpa) The cylinder material Duration of Usage(min) Weight(kg) Package Dimension(cm)
330435 THB/10-1 2.2 21 Steel Composite ≥10 7 48x16x26
THB15-II 3 21 Steel Composite ≥15 8.5 60x16x26
THBF15-II 3 21 Corbon Fiber Composite ≥15 5 56x22x24
330438 THB/15-I 3 21 Steel Composite ≥15 9.5 60x16x26
