Marine Ship A39 Swivel Head Fairlead Revolving Fairlead

Description

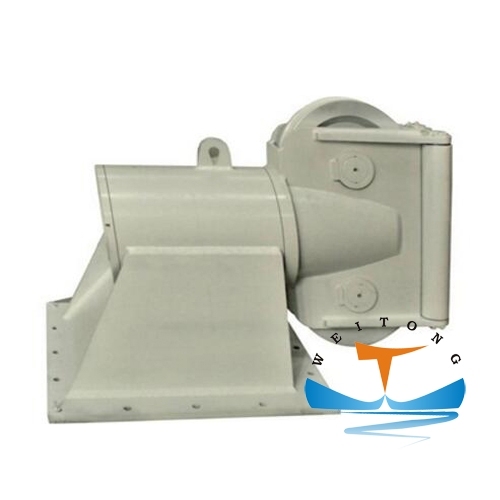

Marine Ship A39 Swivel Head Fairlead Revolving Fairlead
360 Degree Swivel Fairlead is one kind of fairlead device, designed to guide wire ropes or anchor chains for ship mooring.
We provide multiple types swivel fairleads 360⁰swivel anchor fairlead, vertical lead sheaves, horizontal lead sheave and so on.
Certificate: ABS,DNV,GL,RINA,BV etc.

Swivel Head Fairlead is the heavy-duty balanced head swivel head anchor fairlead. The swivel head anchor fairlead is suitable for use in most deck-mounted or flange-mounted marine-duty applications, which can be manufactured with welded foundation or bolted foundation.

Features:

*designed for breaking strength of wire with 90° wrap on sheave and +/- 90° rotation of swivel head;
*sealed lubricated tapered roller bearings;
*hardened rope grooves for longer life;

Technical Parameters:

Wire Rope Dia.	Sheave Dia.	Dimensions (mm)						Weight
(mm)	(mm)	A	B	C	T	G	H	(kg)
25	254	559	356	651	20	90	292	367
32	305	711	508	862	30	100	343	612
38	406	780	782	1231	30	150	489	720
44	508	1067	914	1503	50	190	546	1700
50	610	1219	1067	1775	50	220	648	2108
64	762	1370	1550	2400	50	300	800	4370

Besides the marine swivel head fairlead , we also supply other fairleads as following:

Standard and model number	Type
DIN (81902)	Marine fairlead
DIN (72028)	Fairlead with horizontal rollers
EU	Fairlead rollers
JIS F (2026-1980)	Marine fairlead
JIS F (2004)	Steel marine fairlead
JIS F (2014)	Fairlead roller
CB/T (435)	Horizontal marine fairlead
CB/T (436)	Single roller fairlead with cleat
