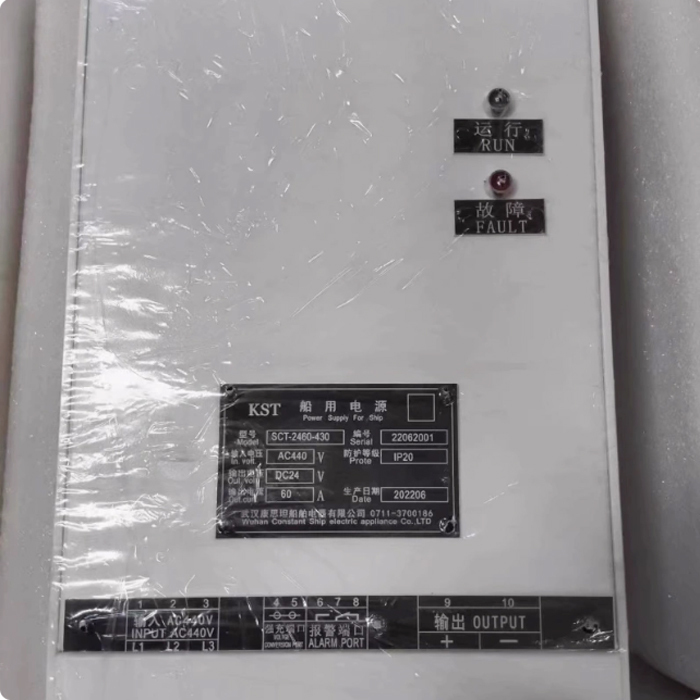

SC series marine power supplies are switch-mode charging power supplies applying high-frequency PWM pulse-duration modulation technology and mainly composed of IGBT, fieldeffect power tube and integrated PWM controller. The complete machine adoptsintelligent cooling.The reliable operation of power supplies can be ensured even in the hottest cabin. Power supplies meet all specifications and rules of China Classification Society, comply with the basic standards of marineelectric andspecifications, pass Type Approval of China Classification Society.and accord with the relevant regulations of GB7061 -98 General Specification for Low-Voltage Switchgear and Controlgear Assemblies in Ships GB/T14548-93 General Specification for Marine Semiconductor Convertors and Rules for Classification of Sea-going Seel Ships
Specifications:
Model SCT- | 2420- | 2430- | 2440- | 2460- | 2480- | 24100- | 24200- | ||||||||
Input | Input rated voltage (±15%) |
(220)single-phase 220Vac (230) three-phase 220Vac (330)three-phase 330Vac (430)three-phase 440Vac |
|||||||||||||
Input frequency range | 45~65Hz | ||||||||||||||
Maximum input current | 220 | 6A | 220 | 8.5A | 220 | 9A | 220 | 20A | 220 | 23A | 220 | 25A | 220 | 38A | |
230 | 230 | 230 | 230 | 230 | 230 | 230 | |||||||||
330 | <3A | 330 | <4.2A | 330 | <5A | 330 | <9A | 330 | <11A | 330 | <13A | 330 | <26A | ||
430 | 430 | 430 | 430 | 430 | 430 | 430 | |||||||||
Efficiency | 85% | ||||||||||||||
Out put | Output float charge voltage | 26.4Vdc | |||||||||||||
Output average charge voltage | 28.2Vdc | ||||||||||||||
Average and float charge conversion current | 1/10 of output current±1A | ||||||||||||||
Maximun output current | 20±1A | 30±1A | 40±1A | 60±1A | 80±1A | 100±1A | 200±1A | ||||||||
Stabilized voltage precision | ±1% | ||||||||||||||
Output ripple and noise | VPP≤500mv | ||||||||||||||
Ptotection | Output overvoltage protection | 30±1Vdc | |||||||||||||
Output undervoltage alarm | 21±1Vdc | ||||||||||||||
Overheat protection | 85±5℃(Temperature inside the machine) | ||||||||||||||
Output short circuit protection | The device is free from damage after short circuit and antomatically recovers after the removal of short circuit |
||||||||||||||
Function | Output Alarm port | The relay completes contact action when input poer supply is normal and the device works The relay resets in the case of device fault(maximum contact voltage and current 32V 1A) |
|||||||||||||
Enviroment | Operating temperature | 0℃~+55℃ | |||||||||||||
Storage temperature | -10℃~+70℃ | ||||||||||||||
Relative temperature | ≤95% of salt mist, oil mist and mold | ||||||||||||||
Heat emission method | Air Cooling | ||||||||||||||
Atmospheric pressure | 86kPa~106kPa | ||||||||||||||
Safety Regulation |
Dielectric strength | Input single-phase and three-phase 220Vac | Input three-phase and three-phase 220Vac | ||||||||||||
Input to output: 1500Vac/10mA/1 min | Input to output: 2500Vac/10mA/1 min | ||||||||||||||
Input to the ground: 1500Vac/10mA/1 min | Input to the ground: 1500Vac/10mA/1 min | ||||||||||||||
Output to the ground: 500Vac/10mA/1 min | Output to the ground: 500Vac/10mA/1 min | ||||||||||||||
Insulation resistance | ≥10MΩ | ||||||||||||||
Other | Overall dimnensions | 310*190*90mm | 410*260*110mm | 530*280*230mm | |||||||||||
Installation dimensions | 295*160mm | 385*234mm | 510*200mm | ||||||||||||
Weight | 5Kg | 8Kg | 25Kg |
