Single Deck Navigation Signal Light CXH-3P

Description

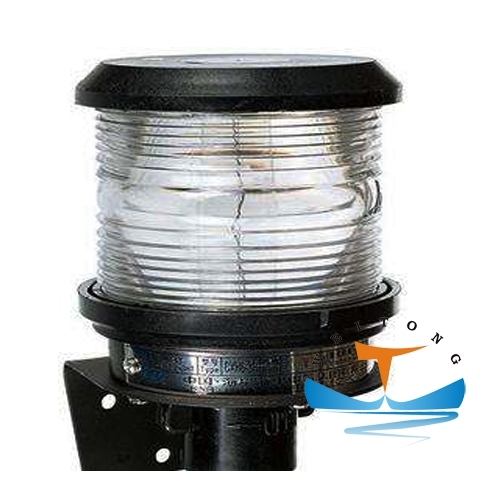

Navigation Signal Light CXH-3P
The Navigation Signal Light used to the ship with length50M or above as lamp signal liaison when night navigation.
Standards
1. Confirm to the international regulation for preventing collision at sea, 1972 and grade entry norms for steel ships.
2. Confirm to the International Standard IEC60598-1-2008.
3. Confirm to the standard of marine electric signal light’s technical condition GB/T 3028-2012
Feathures
1. The signal lights have the seal structure, waterproof under the extreme enviroment.
2. The shell is made of high-strength engineering plastic PA+GF, the lamp shade use injection of PC, lens hood of good quality
3. Special light bulb with average life up to 700hrs.
4. Working Temperature:-30℃-55℃
Navigation Signal Light CXH-3P Specifications

Name	Type	Visibility	Level Arc	Lamp Holder	Voltage/power	Protection Class	Cable Outside Dia	Color	Weight
Starboard Light	CXH1-3P	3n.m	112.5°	BAY15d	12v/15W	IP56	Φ9	Green	0.53kg
Port Light	CXH2-3P	3n.m	112.5°					Red	0.53kg
Masthead Light	CXH3-3P	6n.m	225°					White	0.53kg
Stern Light	CXH4-3P	3n.m	135°					White/yellow	0.53kg
All-Round	CXH6-3P	3n.m	360°					Red/white/yellow	0.53kg
