Description

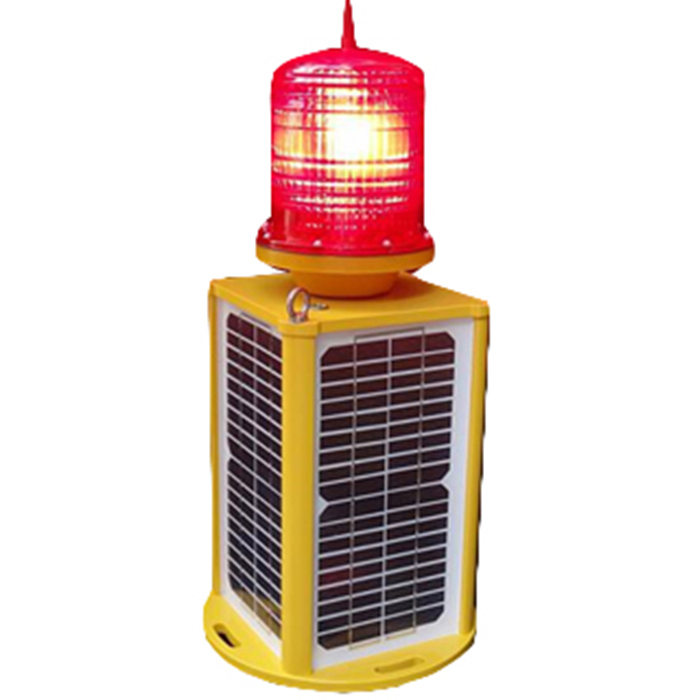

Solar Navigation Light For Ship

Solar Navigation Light is high power and high brightness LED integrated light source.

with reference to JT/T 761-2009 beacon light general technical requirements..

Application:

Inland river coastal buoys, shore signs, fixed lamp piles and offshore oil derrick signal lighthouse, tower (power, communication, microwave, etc.), chimney (thermal power plant, coking plant, chemical plant, etc.), high-rise buildings, large Bridges, large port construction machinery, wind turbines and other occasions that need to play a warning role to aviation.

Specification:

Model	T401
发光强度 light intensity	Flashing mode	Flash	Fixed Light
	Green	~ 395 Candela	~398 Candela
	Red、Amber、White、Blue	~ 378 Candela	~282 Candela
	Visible Range (T=0.74)	Green： ~7.5 Mile	~7.6 Mile
		Red、Amber、White、Blue：~7.5 Mile	~7.6 Mile
	Vertical vergence Angle	≥8°(meet IALA standard)
	Horizontal light output	360°
控制系统 Control system	Auto- luminescence time	＞300 Hour	＞150 Hour
	Min. sunshine duration	1.5 Hour	3 Hour
	Latitude range	55°sto55°N
	Daylight switch sensitivity	250±50Lx
	quiescent current	<5mA
	illuminant	Integrated high power LED chip
	LED life	Above 100,000 hours
	Standard flash mode	Morse code 256 kinds of flashing (meet IALA GB4696, GB 5863)）
	Synchronization mode (Optional)	2.4G Cellular synchronization mode≦ 150 mtr
		with GPS synchronization module, multiple lights wireless synchronous flash
	Remote telemetry（optional）	With GSM/VHF Communication module (RTU), being remote control monitor terminal
Solar photovoltaic module	type	Monocrystalline silicon with UV protection, high transmittance toughened glass guard plate
	Photovoltaic module power	Crest Voltage:18V、peak power: 24W（6W*4 pcs）solar cell panel
	efficiency	＞14%
Power supply	Type	Lead-acid colloidal battery ( can chose lithium battery)
	volate	12V
	Capacity	12AH/10 hours rate
	Charger port	External fast charging port, customizable
Light body	Lens material	PC cover
	Shell	Aluminum base
	sealing	gasket sealed, battery replaceable from top
	Outline dimension	Base: Ф260× H 562mm
	Installation dimension	4 holes -12/Φ230mm
	NW	≈9KG（lead-acid colloidal battery）、≈7KG（lithium battery）
Working enviroment	Working temperature	-40°C~+70°C
	relative humidity	100%( condensation)
	IP	IP65
Quality control	Quality test	Inspection of National Luminaire Quality Supervision &Inspection Center
	ISO	ISO9001
	Patent	2019 3 0523341.0
