Name: TZ8 1800W LED Suez Canal Search Light
Brand: WEITONG MARINE
SKU: 03350
Availability: InStock
Rating: 5 (1 reviews)

Home > Marine Illumination Electric Equipment > Marine Lighting Fixture > Marine Searchlight

Description

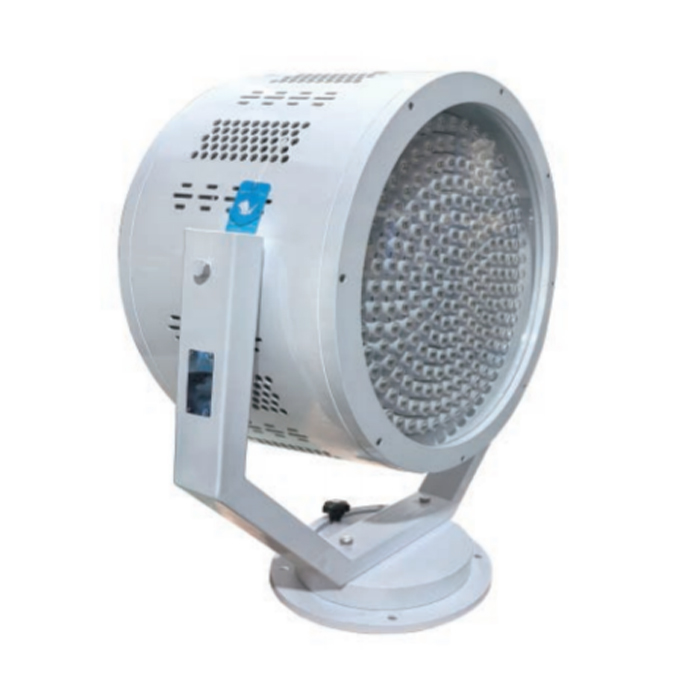

TZ8 1800W LED Suez Canal Search Light

The scope of application

It is suitable for ships, naval vessels and night navigation for long-rangesearch lighting. Especially through narrow waterways, inland rivers and othermore complex waters, irradiation channel and both sides, surface search.search and rescue use;Suitable for ports, docks, offshore platforms, construction sites, cargo yardsand other open places to do lighting use.

Products characteristic

1. The outer shell of the lamp body is made of high-quality aluminum alloy,and the surface is coated with outdoor plastic powder;2. Adopting high-power LED light source, high brightness, low thermalresistance, equipped with convex lens with a light output angle of onlyabout 6 degrees;

3. Adopting high-performance drivers with protection functions such as shortcircuit,overvoltage,overload, over temperature and power drop;4. The lamp can be adjusted by ± 30 degrees for pitch and 180 degrees forhorizontal adiustment;

5. Complies with the requirements of the classification standards for steel sea vessels

Specifications

Type TZ8
Rated Voltage	100V~277V 50/60HZ
Power	1800W
Power Factor	≥0.95
Illuminant	LED CREE 3535
Color Rendering Index	Ra≥80
Color Temperature	6000K
Luminous Flux	252000LM
Light Angle	5°
Ambient Temperature	-40℃~+55℃
Exposure Distance	2000m
Adjustment Method	manual
Horizontal Angle	120°
Vertical Angle	Elevation Angle 30°,Depression Angle 30°
Protection Class	IP56
Cable Outside Diameter	12-Φ16
Material	aluminum
Weight	48KG
Installation Method	Seat-mounted Type
