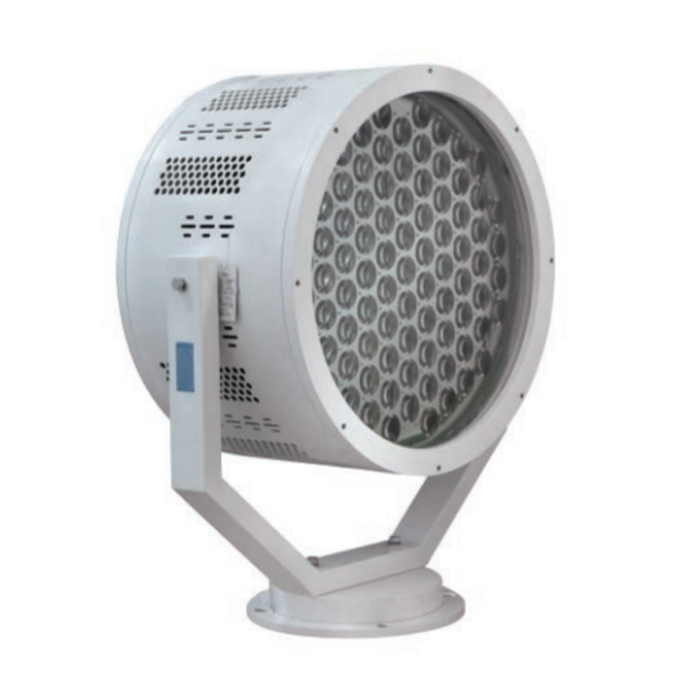

Name: TZ9 3000W/4000W LED Marine Search Light
Brand: WEITONG MARINE
SKU: 03349
Availability: InStock
Rating: 5 (1 reviews)

Home > Marine Illumination Electric Equipment > Marine Lighting Fixture > Marine Searchlight

Description

TZ9 3000W/4000W LED Marine Search Light

The scope of application

It is suitable for ships, naval vessels and night navigation for long-rangesearch lighting.Especially through narrow waterways, inland rivers and othermore complex waters, irradiation channel and both sides, surface search.search and rescue use;Suitable for ports, docks, off shore platforms, construction sites, cargo yardsand other open places to do lighting use.

Products characteristic

1. The outer shell of the lamp body is made of stainless steel and the surfaceis coated with outdoor plastic powder;

2.Using high-power white laser light source, high brightness, low thermalresistance, equipped with a dual convex lens with a light output angle ofonly about 4 degrees;

3. Adopting high-performance drivers with protection functions such as shortcircuit, overvoltage, overload, over temperature and power drop;4. The lamp can be adjusted by ± 30 degrees for pitch and 180 degrees forhorizontal adjustment;

5. Comply with the requirements of the classification standards for steel sea vessels;6.Patent number: 201520694772.X

Main technical parameter

Type	TZ9
Rated Voltage	100V~277V 50/60HZ
Power	3000W/4000W
Power Factor	≥0.95
Illuminant	LED 7070
Color Rendering Index	Ra≥70
Color Temperature	6000K
Luminous Flux	300000LM/400000LM
Light Angle	3°
Ambient Temperature	-40℃~+55℃
Exposure Distance	8000m
Adjustment Method	Manual
Horizontal Angle	120°
Vertical Angle	Elevation Angle 30°,Depression Angle 30°
Protection Class	IP56
Cable Outside Diameter	φ12-φ16
Material	Aluminum
Weight	98KG
Installation Method	Seat-mounted Type
