Name: WD-2 Marine Electric Control Fog Horn
Brand: WEITONG MARINE
SKU: 02449
Availability: InStock
Rating: 5 (1 reviews)

Home > IMPA Marine Material > 37 - Nautical Equipment > Marine Electric Whistle

Description

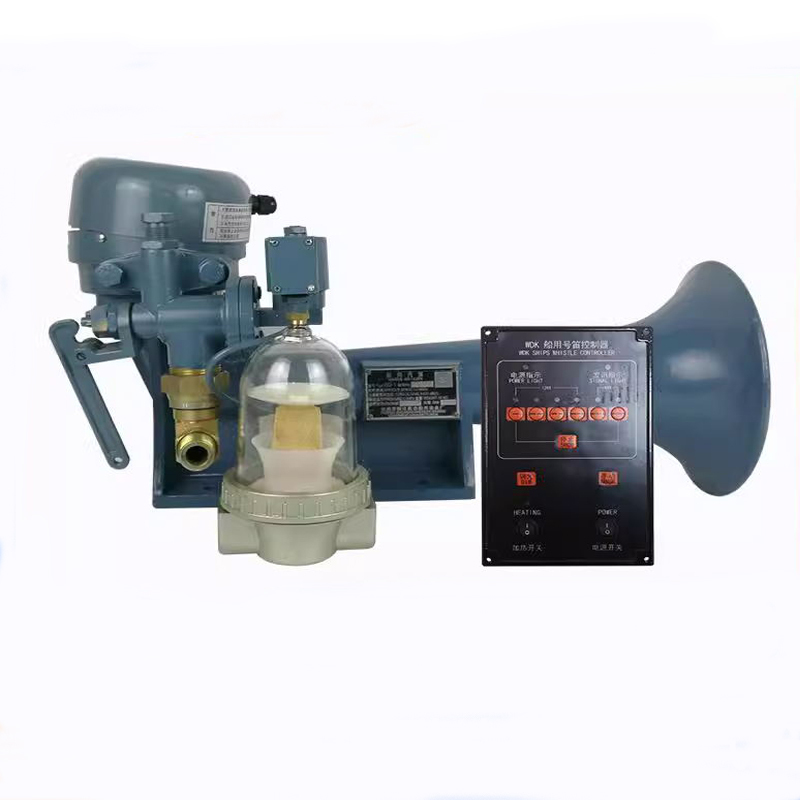

WD-2 Marine Electric Control Fog Horn
The productions of WD-controlled diaphragm type electric air horn by our factory, are widely used in various types of ships’ acoustic apparatuses. The device for the diaphragm vibration pronunciation, by compressed air as a driving force to promote the diaphragm vibration alarms issued.In the light of CB * 881-84 standards for the design, manufacture, this device uses advanced technological process. The pronunciation body and the control valve body use copper alloy and the use of aluminum alloy horn with light weight, high strength, large volume, less power consumption, etc,all of those make the performance of indicators are met or exceeded the standard requirements.

Product Name	220V24V Marine Whistle Electric Air Horn With CE,CCS Certificate
Type	WD-1	WD-2	WD-3
Voltage of Magaetic Valve(DC)	220/24
Power consumed of magnerc Valve	45
DN (mm)	25
Air pressure (Mpa)	10(0.98)
Air Consumed(m³/s)	≥8.3*10-3
Voltage of Heater(V) (AC)	220
Power Consumed of Heater (w)	150
Audibility Range (mile)	1	1.5	2
1/3rd octave band level at 1 meter (dB)	≥130	≥138	≥143
Frequency range (Hz)	250-700	130-350	70-200
Main engine weight (kg)	20	30	45
Length of vessel(m)	<75	≥75 <200	≥200
