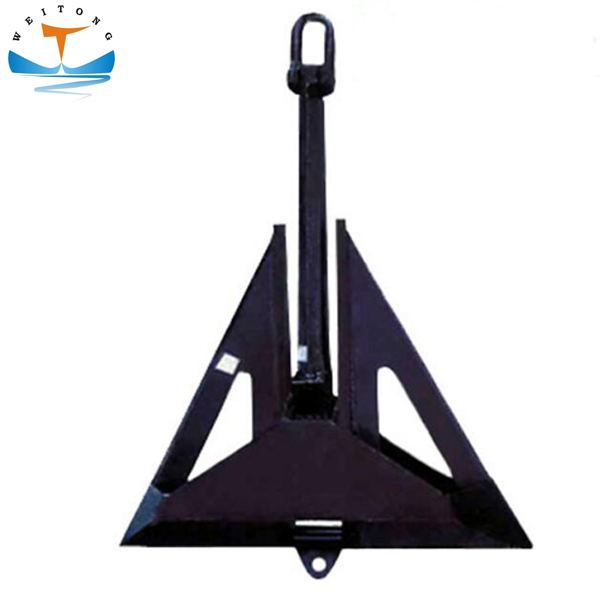

ABS/BV/CCS Certificate Marine Delta High Holding Power Anchor For Sale

Item No.: 01081
Weitong Marine offers Delta Anchor in high quality with reasonable price and best service. If you are interested in the item, pls don't hesitate to contact us for more details.
Description
Description
ABS/BV/CCS Certificate Marine Delta High Holding Power Anchor For Sale
Material: Casting Steel and Steel Plate
Weight: from 300KGS to 25000KGS
Delta Anchor Certificate: ABS,LR,NK,DNV,GL,RIS,BV,KR, CCS
Delta Anchor Specification
Weight/Mass (KG) Size(mm)
A B C D E F
300KGS 1200 960 1080 457 1380 45
500KGS 1500 1200 1350 571 1725 50
1000KGS 1875 1500 1686 714 2155 62
1080KGS 1915 1530 1686 722 2200 62
2000KGS 2363 1890 2124 900 2715 82
3000KGS 2700 2160 2430 1028 3105 90
4000KGS 2975 2380 2676 1133 3420 100
5000KGS 3250 2600 2922 1238 3735 110
7000KGS 3575 2860 3216 1361 4100 117
7500KGS 3650 2925 3290 1390 4210 117
8000KGS 3730 2900 3360 1420 43000 130
9000KGS 3950 3160 3555 1504 4543 135
10000KGS 4100 3280 3690 1561 4715 140
12000KGS 4490 3575 4030 1695 5320 145
13500KGS 4670 3720 4195 1765 5535 150
15000KGS 4845 3875 4355 1830 5735 150
18000KGS 5140 4080 4610 1940 6080 160
20000KGS 5330 4260 4790 2010 6310 170
22500KGS 5490 4360 4905 2060 6470 180
25000KGS 5740 4590 5160 2165 6795 195
