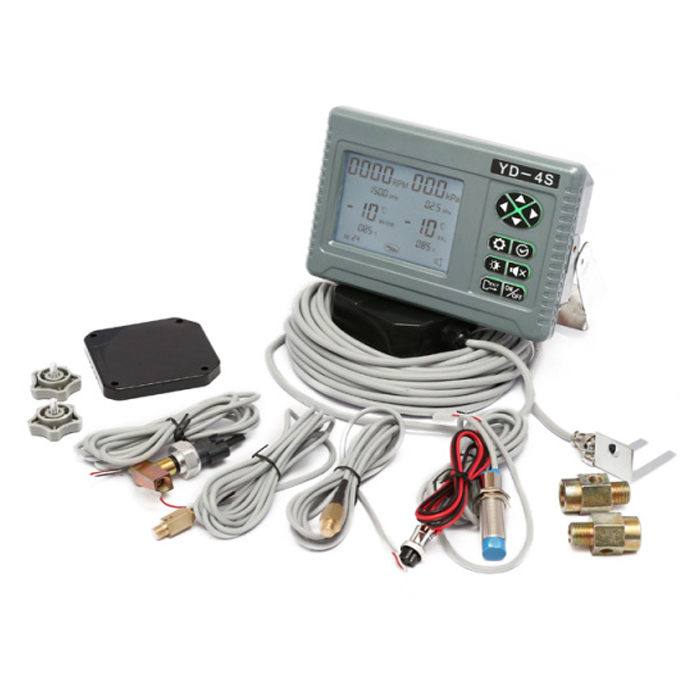

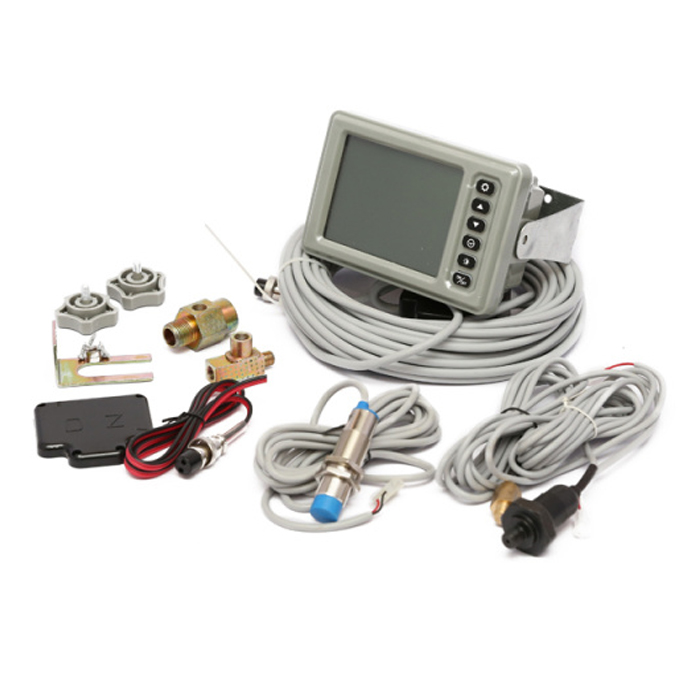

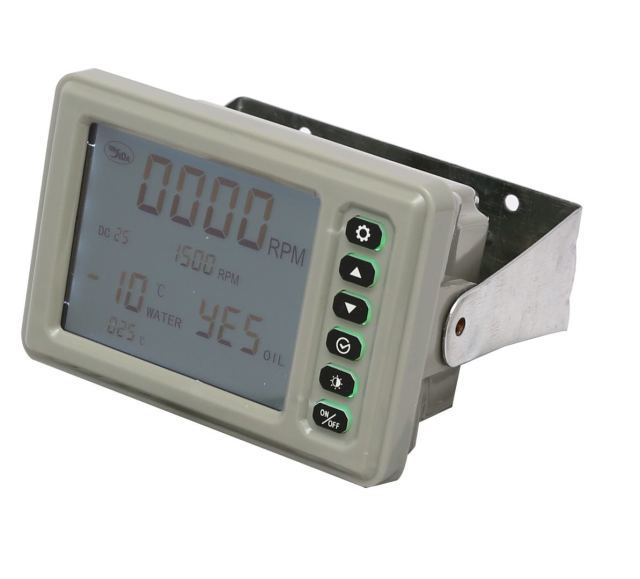

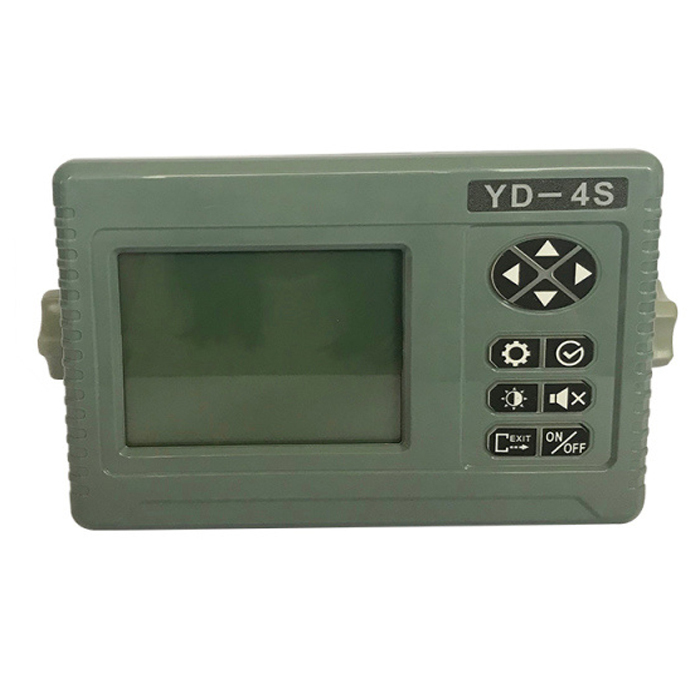

YD-3S/YD-4S/YD-7S/YD-30S Diesel Engine Monitor

Item No.: 03030
Our diesel engine monitorAdopt superior and fully digital optoelectronic martial, using imported  MCU as the core, with digital display of high brightness;,are suitable all kinds of diesel engine, Gasoline engine and generator。
Description
Description
YD-3S/YD-4S/YD-7S/YD-30S Diesel Engine Monitor

Applicable: all kinds of diesel engine, Gasoline engine and generator;

Description:

(1)Read out: RPM, oil pressure,water temperature, oil temperature, give audible and visual alarm when oil pressure, water temperature exceed or less than settings;

(2) Adopt superior digital optoelectronic martial, using imported MCU as the core part,digital display tube of high brightness;

(3)Adopt high-quality sensors of advanced enterprise (TOYOTA pressure sensor );

(4)be The essential instruments for all kinds of diesel engine.



Technical  Parameter:

1.Measurement: RPM:  0 ~ 9999RPM;

2.Water temperature: -10 ~ 120°c;

3.Oil temperature; -10 ~ 120°c;

4.Oil pressure :0-34kg

5.. Input voltage: 18~32V; standard DC24V; [DC12V(Custom-made)]

6. Current: 160mA;  At alarm: 400mA;

7.Working temperature:-20~80°c

8. Host Size: 220*153*100mm

9.Host weigh: 1.0kg

10.material : ABS
